Overview

500 series high-flow pumpheads

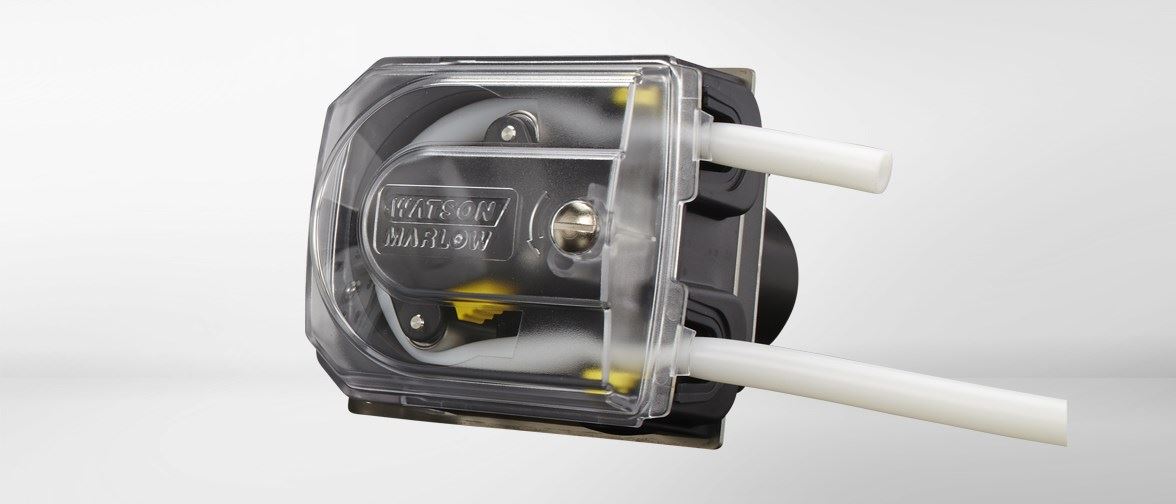

520R pumphead

  • 520Rpumpheads feature two sprung rollers and transparent cover so you can see the pump running easily. Pumpheads accept eight sizes of continuous tubing up to 9.6 mm bore, without need for adjustment. There are versions for 1.6 mm wall and 2.4 mm wall thickness tubing for higher pressure or higher viscosities.

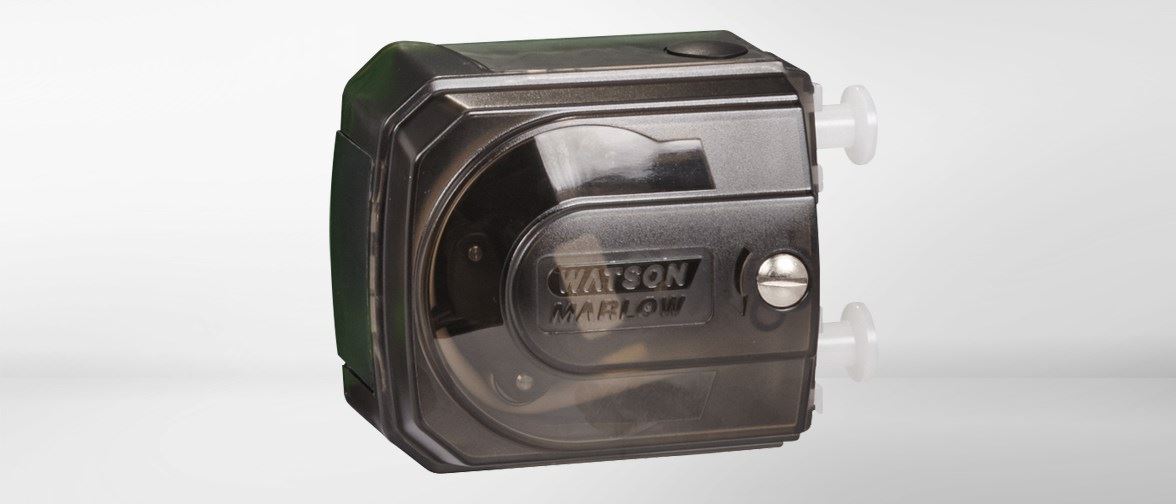

  • 520RELoadSure® element pumpheads guarantee perfect tube loading and one-minute maintenance and pressure up to 7 bar (dependant on the choice of drive).

REL—LoadSure® elements for 0–2 bar operation

REM—LoadSure® Elements for 2–4 bar operation

REH—LoadSure® Elements for 4–7 bar operation

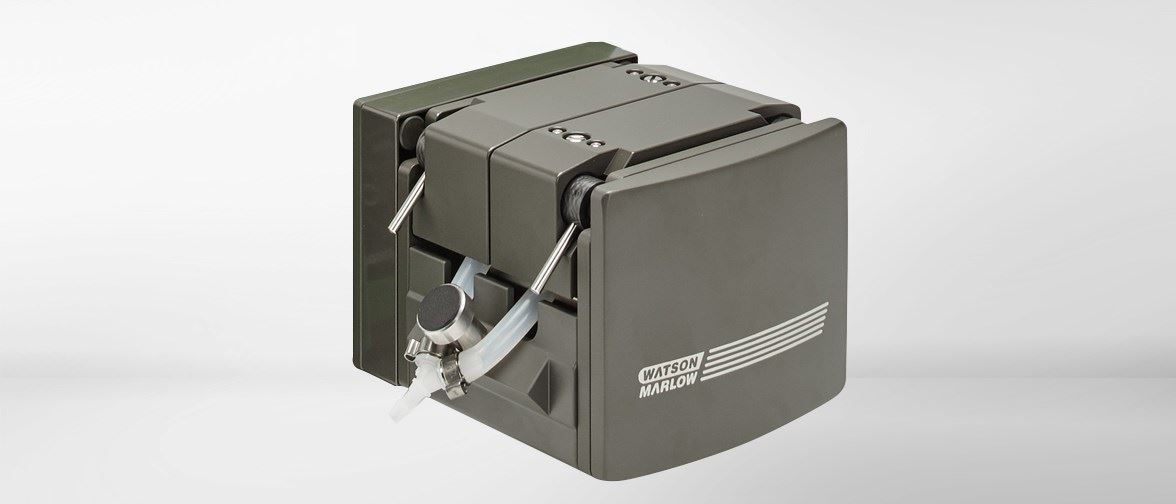

505L pumphead

几乎pulse-free流double-Y的双胞胎tube design. Flow rates to 4,375 ml/min. 505LX extension pumphead can be used to increase flows or channels. For a two-channel set-up, use the additional 505LTC tube clamp set.

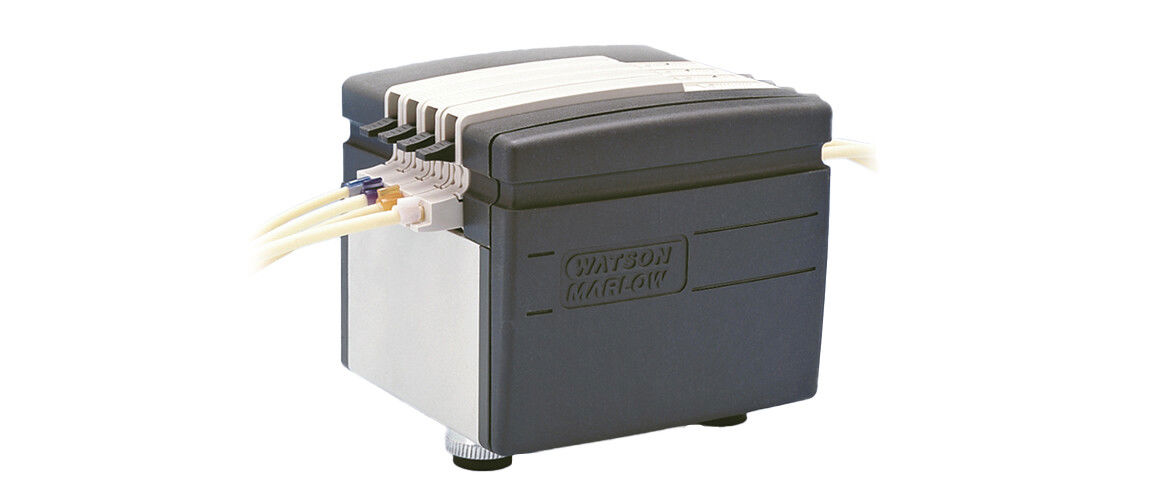

505CA pumphead

Multi-channel cassette pumphead provides high-precision pulsation-free flow. Multi-turn 'click-stop' pressure adjustments on each cassette, enable flow control for each channel. Lockable occlusion adjustment allows settings to be optimised when necessary and, uniquely, remain undisturbed during tube changes. 505CA pumpheads accept manifold pump tubing in six different materials and nineteen sizes.

    Technical summary

    Max. flow rate continuous 4375 ml/min
    Max. flow rate continuous 69.35 USGPH
    Pump type Cased, Panel mount
    Weight 1.1 - 6.2 kg

    Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

    Share

    Performance

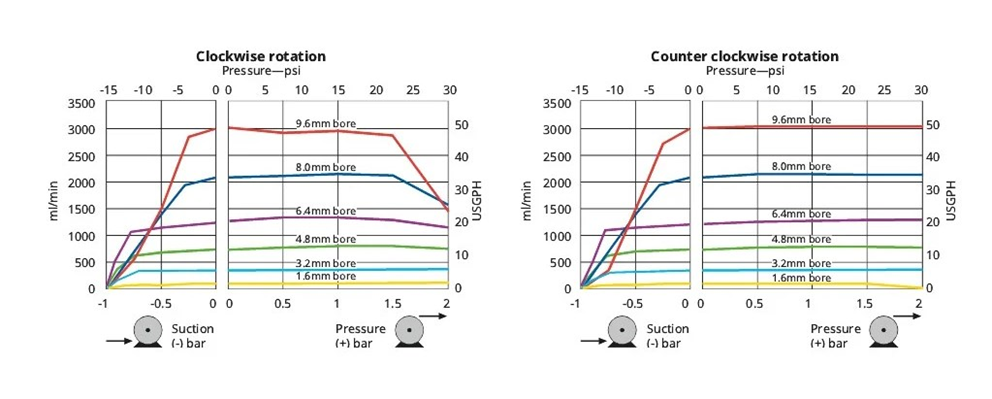

    520R pumphead performance

    520R twin sprung roller pumpheads for continuous 1.6 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
    Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
    Pumpsil®, Neoprene, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm 0.004-9.5 (0–0.15) 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) NA
    Marprene®, Bioprene®, PureWeld XL® 0.1–220rpm 0.004-9.0 (0–0.14) 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) NA
    520R2 twin sprung roller pumpheads for continuous 2.4 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
    Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
    Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm NA 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) 1.60-3500 (0.03–55.5)
    Marprene®/Bioprene®, PureWeld XL® 0.1–220rpm NA 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) 1.50-3300 (0.02–52.3)

    REL element pumphead performance

    520REL twin-roller pumphead for LoadSure® element tubing — flow rates — ml/min (USGPH)
    Tube material Speed 3.2mm 6.4mm 9.6mm
    Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8) 1.60-3500 (0.03–55.5)
    Marprene® TL, Bioprene® TL 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8) 1.50-3300 (0.02–52.3)

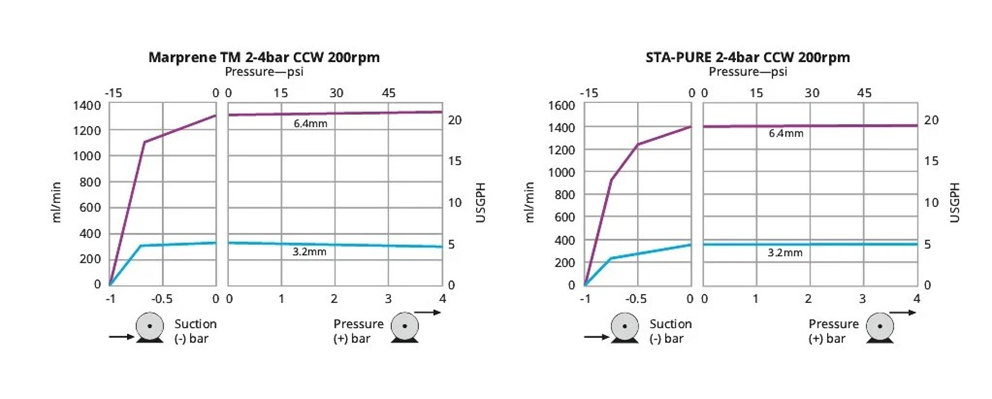

    REM element pumphead performance

    520REM twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
    Tube material Speed 3.2mm 6.4mm
    Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8)
    Marprene® TM, Bioprene® TM 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8)

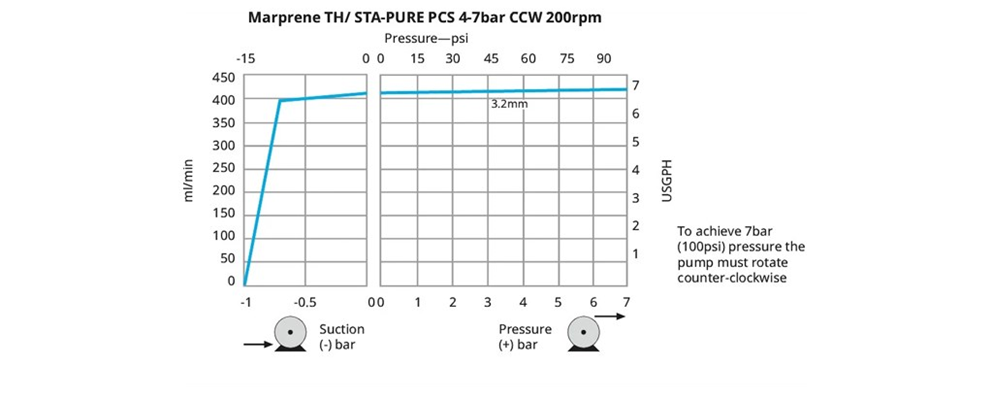

    REH element pumphead performance

    520REH twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
    Tube material Speed rpm 3.2mm
    Marprene® TH, Bioprene® TH, GORE® STA-PURE® Pump Tubing – Series PCS 0.1 to 220 0.20-450 (0–7.13)

    520RET element pumphead for Maxthane Elements performance

    520年ret双滚轮pumpheads Maxthane®LoadSure®elements tubing — flow rates — ml/min (USGPH)
    Tube material Speed 3.2 mm 6.4 mm 9.6 mm
    Maxthane® 0.1-220 rpm 0.24-520 (0-8.24) 0.75-1600 (0.01-25.4) 1.3-2900 (0.02-46.0)

    505L pumphead performance

    Tube bore and flow rates (ml/min)
    Min Max Ratio Speed rpm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
    0.1 220 2200:01 0.1-220 0.04-95 0.23-500 0.42-930 0.70-1500 0.90-2000 1.3-2800
    0.1 350 3500:01 0.1-350 0.04-150 0.23-800 0.42-1500 0.70-2500 0.90-3200

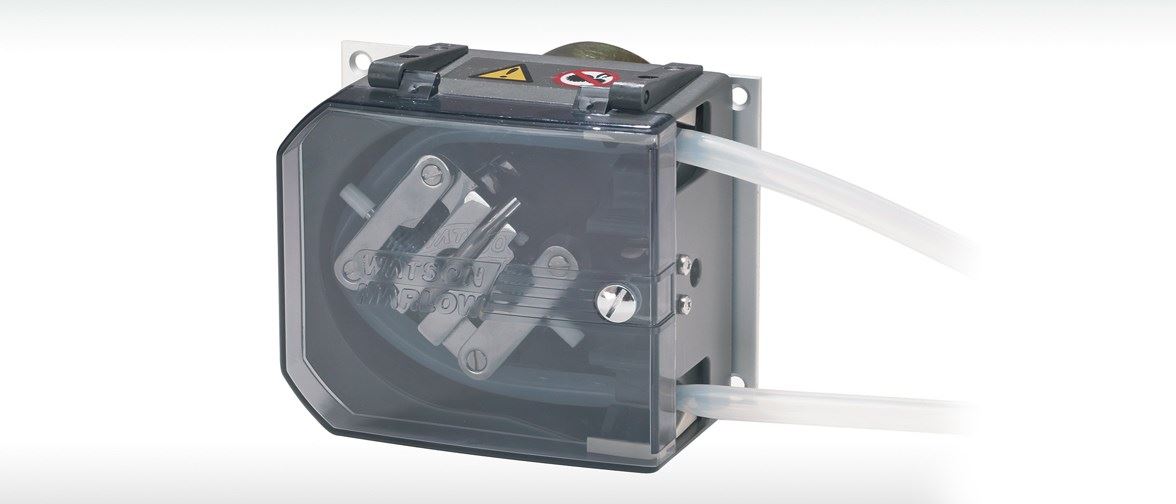

    501RL pumphead performance

    Tube bore and flow rates (ml/min)
    0.5mm 0.8mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm
    Flow rate (ml/revolution) 0.04 0.12 0.43 1.86 4.05 6.35 10.0
    Max continuous flow rate (ml/min) 12.0 36.0 129 558 1215 1905 3000
    Tube life (hours) for 501RL pumphead: clockwise rotation No pressure. Clockwise rotation. 6.4mm bore tubing, except Marprene which was 4.8mm bore
    Bioprene TL/Marprene TL 10,000
    STA-PURE 1,500
    Neoprene 280
    Fluorel 210
    Pumpsil 200
    PVC 120
    Tube life (hours) for 501RL pumphead: anticlockwise rotation Anticlockwise rotation. 1 bar (15psi). 6.4mm bore tubing, except Marprene which was 4.8mm bore
    Bioprene TL/Marprene TL 6,000
    STA-PURE 1,100
    Neoprene 68
    Fluorel 58
    Pumpsil 50
    PVC 50

    505CA pumphead performance

    Tube bore and flow rates (ml/min)
    Speed (rpm) 0.13 mm 0.19 mm 0.25mm 0.38 mm 0.50 mm
    530S,530U 0.1 - 55 0.0006 - 0.61 0.009 - 0.09 0.0014 - 0.16 0.0024 - 0.27 0.004 - 0.44
    Max permissible speed 170 0.19 0.29 0.44 1.22 1.90
    Speed (rpm) 0.63 mm 0.76 mm 0.88 mm 1.02 mm 1.14 mm
    530S,530U 0.1 - 55 0.008 - 0.79 0.010 - 1.16 0.014 - 1.54 0.20 - 2.04 0.022 - 2.51
    Max permissible speed 170 2.82 3.81 5.51 7.11 8.84
    Speed (rpm) 1.29 mm 1.42 mm 1.47 mm 1.52 mm 1.65 mm
    530S,530U 0.1 - 55 0.030 - 3.22 0.034 - 3.32 0.038 - 4.14 0.040 - 4.37 0.046 - 5.05
    Max permissible speed 170 11.2 13.6 14.5 17.4
    Speed (rpm) 1.85 mm 2.05 mm 2.38 mm 2.54 mm 2.79 mm
    530S,530U 0.1 - 55 0.060 - 6.31 0.070 - 7.6 0.090 - 9.84 0.11 - 11.0 0.12 - 12.8
    Max permissible speed 170 21.4 26.0 31.2 36.5 41.6

    Specifications

    Technical specifications

    520R pumphead 520R2 pumphead REL element pumphead REM element pumphead REH element pumphead 520RET element pumphead for Maxthane Elements 505L pumphead 501RL pumphead 505CA pumphead
    Number of channels 1 1 1 1 1 1 1 4, 8, 12, 16
    Number of rollers 2 2 2 2 2 2 8
    Max. flow rate continuous 4375 ml/min 3000 ml/min 42 ml/min
    Max. flow rate continuous 69.35 USGPH 47.55 USGPH 0.067 USGPH
    Max. operating speed 350 rpm 170 rpm
    Operating temperature range 5 to 40 °C
    Operating temperature range 41 to 104 °F
    Pump type Cased, Panel mount Cased, Panel mount Cased, Panel mount Cased, Panel mount Cased, Panel mount Cased Cased, Panel mount Cased, Panel mount Cased
    Accuracy 0.5 %
    Standards BS EN (IP31), BS EN 50082-1, BS EN 61010-1, CE
    Weight 2.5 kg 1.1 kg 2.7 - 6.2 kg
    Weight 1.38 - 31.69 lbs
    Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 3.2, 6.4, 9.6 mm 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8 mm 0.13, 0.19, 0.25, 0.38, 0.5, 0.63, 0.76, 0.88, 1.02, 1.14, 1.29, 1.42, 1.47, 1.52, 1.65, 1.85, 2.05, 2.38, 2.54, 2.79 mm
    Compatible tubing wall thickness 1.6 mm 2.4 mm 2.4 mm 1.6 mm

    505L pumphead dimensions

    505CA pumphead dimensions

    Materials of construction

    Pumphead body assembly Acetal, Aluminium, Aluminium alloy, Brass
    Pumphead guard Polycarbonate, Verton
    Pumphead track Aluminium, PPS (polyphenylene sulphide)
    Pumphead roller assembly Carbon steel, Delrin, MoS2 filled Nylon 6 (Nylatron), PPS (polyphenylene sulphide), Stainless steel, Stainless steel 316
    Pumphead rotor assembly Aluminium, Mazak, chromium plated, PPS (polyphenylene sulphide), Stainless steel, Stainless steel 316
    Tube clamp assembly Acetal copolymer (Kematal)

    Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

    Literature

    Datasheet

    1. 501RL pumphead datasheet (EN).pdf
      PDF - 461.9kb
    2. 505CA datasheet (EN).pdf
      PDF - 461.3kb

    Manuals

    1. 505CA Pumphead Manual (EN).pdf
      PDF - 3.7mb
    2. 505L pumphead manual (EN).pdf
      PDF - 384.4kb
    3. 501RL pumpheads ATEX Directive (2014-34-EU) (EN).pdf
      PDF - 415.4kb
    4. 501RL pumpheads manual (EN).pdf
      PDF - 517.3 kb

    Order Information

    产品codes

    520R pumphead product codes

    Description Partcode
    520R Pumphead 1.6 wall for continuous tubing 053.1011.100
    520R2 Pumphead 2.4 wall for continuous tubing 053.1011.2L0
    520REH Element pumphead for 7Bar/100psi element 053.1011.EH0
    520REL Element pumphead for 2Bar/30psi element 053.1011.EL0
    520REM Element pumphead for 4Bar/60psi element 053.1011.EM0
    520RET Element pumphead for maxthane element 053.1011.ET0
    Tubing 1.6 mm wall thickness tubing for 520R
    Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
    0.5mm (1/50in) 112 913.A005.016 942.0005.016 933.0005.016 NA 902.0005.016
    0.8mm (1/32in) 13 913.A008.016 942.0008.016 933.0008.016 902.0008.016
    1.6mm (1/16in) 14 913.A016.016 942.0016.016 933.0016.016 961.0016.016 966.0016.016 902.0016.016
    3.2mm (1/8in) 16 913.A032.016 942.0032.016 933.0032.016 961.0032.016 966.0032.016 902.0032.016
    4.8mm (3/16in) 25 913.A048.016 942.0048.016 933.0048.016 961.0048.016 966.0048.016 902.0048.016
    6.4mm (1/4in) 17 913.A064.016 942.0064.016 933.0064.016 961.0064.016 966.0064.016 902.0064.016
    8.0mm (5/16in) 18 913.A080.016 942.0800.016 933.0080.016 961.0080.016 966.0080.016 902.0080.016

    520R2 pumphead product codes

    Tubing 2.4 mm wall thickness tubing for 520R2
    Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
    1.6mm (1/16in) 119 913.A016.024 NA 933.0016.024 961.0016.024 966.0016.024 902.0016.024
    3.2mm (1/8in) 120 913.A032.024 933.0032.024 961.0032.024 966.0032.024 902.0032.024
    4.8mm (3/16in) 15 913.A048.024 933.0048.024 961.0048.024 966.0048.024 902.0048.024
    6.4mm (1/4in) 24 913.A064.024 942.0064.024 933.0064.024 961.0064.024 966.0064.024 902.0064.024
    8.0mm (5/16in) 121 913.A080.024 NA 933.0080.024 961.0080.024 966.0080.024 902.0080.024
    9.6mm (3/8in) 122 913.A096.024 933.0096.024 961.0096.024 966.0096.024 902.0096.024

    REL element pumphead product codes

    Element product codes for 520REL
    Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
    3.2mm 6.4mm 9.6mm 3.2mm 6.4mm 9.6mm
    Pumpsil® 913.A032.PFQ 913.A064.PFQ 913.A096.PFQ 913.A032.PFT 913.A064.PFT 913.A096.PFT
    Bioprene® TL 933.0032.PFT 933.0064.PFT 933.0096.PFT
    Marprene® TL 902.0032.PFQ 902.0064.PFQ 902.0096.PFQ
    STA-PURE® Series PCS 961.0032.PFT 961.0064.PFT 961.0096.PFT
    STA-PURE® Series PFL 966.0032.PFQ 966.0064.PFQ 966.0096.PFQ 966.0032.PFT 966.0064.PFT 966.0096.PFT

    REM element pumphead product codes

    Element product codes for 520REM
    Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
    3.2mm 6.4mm 3.2mm 6.4mm
    Bioprene® TM 933.P032.PFT 933.P064.PFT
    Marprene® TM 902.P032.PFQ 902.P064.PFQ
    STA-PURE® Series PCS 961.M032.PFT 961.M064.PFT
    STA-PURE® Series PFL 966.M032.PFQ 966.M064.PFQ 966.M032.PFT 966.M064.PFT

    REH element pumphead product codes

    Element product codes for 520REH
    Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
    3.2mm 3.2mm
    Bioprene® TH 933.H032.PFT
    Marprene® TH 902.H032.PFQ
    STA-PURE® Series PCS 961.H032.PFQ 961.H032.PFT

    520RET element pumphead for Maxthane Elements product codes

    Element product codes for 520RET
    Sanitary LoadSure®在卫生PVDF连接器元素,3/4
    3.2 mm 6.4 mm 9.6 mm
    Maxthane®0-2 bar (0-30 psi) - - 945.0096.PFT
    Maxthane®0-4 bar (0-60 psi) - 945.0064.PFT -
    Maxthane®0-7 bar (0-100 psi) 945.0032.PFT - -

    505L pumphead product codes

    Description Description Partcode
    505L only pumphead for 2.4mm wall tube 053.4001.000
    505LX extension pumphead only for 2.4mm wall tube 053.4011.020
    505LG pumphead only for STA-PURE for 2.4mm wall tube 053.4010.00G
    505LTC Tube clamp set 059.4001.000

    Tube ordering codes - Double ‘Y’ tubing elements

    Tube bore (mm) Marprene STA-PURE PFL® STA-PURE PCS® Pumpsil Bioprene
    1.6 / 2.4 902.E016.K24 961.E016.K24 966.E016.K24 913.AE16.K24 933.E016.K24
    3.2 / 2.4 902.E032.K24 961.E032.K24 966.E032.K24 913.AE32.K24 933.E032.K24
    4.8 / 2.4 902.E048.K24 961.E048.K24 966.E048.K24 913.AE48.K24 933.E048.K24
    6.4 / 2.4 902.E064.K24 961.E064.K24 966.E064.K24 913.AE64.K24 933.E064.K24
    8.0 / 2.4 902.E080.K24 961.E080.K24 966.E080.K24 913.AE80.K24 933.E080.K24
    9.6 / 2.4 902.E096.K24 913.AE96.K24 933.E096.K24
    933.E016.K24
    Transmission tube
    Tube bore (mm) Marprene Pumpsil
    1.6 / 2.4 902.0016.024 913.A016.024
    3.2 / 2.4 902.0032.024 913.A032.024
    4.8 / 2.4 902.0048.024 913.A048.024
    6.4 / 2.4 902.0064.024 913.A064.024
    8.0 / 2.4 902.0080.024 913.A080.024
    9.6 / 2.4 902.0096.024 913.A096.024
    STA-PURE PFL® and STA-PURE PCS® is a registered trademark of W.L Gore & Associates Inc.
    Please state the product code when ordering pumps and tubing.

    501RL pumphead product codes

    Description Partcode
    501RL Single channel pumphead for 1.6mm wall tube 053.0001.L00
    501RL2 Single channel pumphead for 2.4mm wall tube 053.0001.L20

    Tubing 1.6mm wall thickness tubing for 501RL

    Tube bore Tube Bioprene Marprene Pumpsil STA-PURE® PVC
    0.5mm 1/50” 112 903.0005.016 902.0005.016 913.A005.016
    0.8mm 1/32” 13 903.0008.016 902.0008.016 913.A008.016
    1.6mm 1/16” 14 903.0016.016 902.0016.016 913.A016.016 960.0016.016 950.A016.016
    3.2mm 1/8” 16 903.0032.016 902.0032.016 913.A032.016 960.0032.016 950.A032.016
    4.8mm 3/16” 25 903.0048.016 902.0048.016 913.A048.016 960.0048.016 950.A048.016
    6.4mm 1/4” 17 903.0064.016 902.0064.016 913.A064.016 960.0064.016 950.A064.016
    8.0mm 5/16” 18 903.0080.016 902.0080.016 913.A080.016 960.0080.016 950.A080.016

    Tubing 2.4mm wall thickness for 501RL2

    Tube bore Tube Bioprene Marprene Pumpsil STA-PURE®
    1.6mm 1/16” 119 903.0016.024 902.0016.024 913.A016.024 960.0016.024
    3.2mm 1/8” 120 903.0032.024 902.0032.024 913.A032.024 960.0032.024
    4.8mm 3/16” 15 903.0048.024 902.0048.024 913.A048.024 960.0048.024
    6.4mm 1/4” 24 903.0064.024 902.0064.024 913.A064.024 960.0064.024
    8.0mm 5/16” 121 903.0080.024 902.0080.024 913.A080.024 960.0080.024

    505CA pumphead product codes

    Description Description Partcode
    505CA4 505CA4 4 Channel Cassette Pumphead 053.4202.000
    505CA8 505CA8 8 Channel Cassette Pumphead 053.4222.020
    505CA12 505CA12 12 Channel Cassette Pumphead 053.4242.000
    505CA16 505CA16 16 Channel Cassette Pumphead 053.4262.000
    505CAX12 505CAX12 12 Channel Extension Cassette Pumphead 053.3442.000
    505CAX16 505CAX16 16 Channel Extension Cassette Pumphead 053.3462.000

    Tube ordering codes

    Colour code Tube Marprene Autoclavable Marprene PVC Silicone
    Orange/black 0.13 980.0013.000
    Orange/red 0.19 980.0019.000
    Orange/blue 0.25 978.0025.000 978.0025.00+ 980.0025.000
    Orange/green 0.38 978.0038.000 978.0038.00+ 980.0038.000
    Orange/yellow 0.5 978.0050.000 978.0050.00+ 980.0050.000
    Orange/white 0.63 978.0063.000 978.0063.00+ 980.0063.000 982.0063.000
    Black/black 0.76 978.0076.000 978.0076.00+ 980.0076.000 982.0076.000
    Orange/orange 0.88 978.0088.000 978.0088.00+ 980.0088.000 982.0088.000
    White/white 1.02 978.0102.000 978.0102.00+ 980.0102.000 982.0102.000
    Red/red 1.14 978.0114.000 978.0114.00+ 980.0114.000 982.0114.000
    Grey/grey 1.29 978.0129.000 978.0129.00+ 980.0129.000 982.0129.000
    Yellow/yellow 1.42 978.0142.000 978.0142.00+ 980.0142.000 982.0142.000
    Yellow/blue 1.52 978.0152.000 978.0152.00+ 980.0152.000 982.0152.000
    Blue/blue 1.65 978.0165.000 978.0165.00+ 980.0165.000 982.0165.000
    Green/green 1.85 978.0185.000 978.0182.00+ 980.0185.000 982.0185.000
    Purple/purple 2.05 978.0205.000 978.0205.00+ 980.0205.000 982.0205.000
    Purple/black 2.29 978.0229.000 978.0229.00+ 980.0229.000 982.0229.000
    Purple/orange 2.54 978.0254.000 978.0254.00+ 980.0254.000 982.0254.000
    Purple/white 2.79 978.0279.000 978.0279.00+ 980.0279.000 982.0279.000

    Recommended Products

    1. 500 series high-flow pumps

      500 series high-flow pumps

      Durable, single channel pumps for high flows to 3,500 ml/min. Supports continuous tubing and Loadsure elements for high pressures.

      Pumps - panel mount pumps

    2. 530 process pumps

      530 process pumps

      Flow rates to 3.5 L/min (55 USGPH) and pressures up to 7 bar (100 psi). Precise 2,200:1 speed control range.

      Pumps - cased pumps

    4. Bioprene: Thermoplastic tubing

      Bioprene: Thermoplastic tubing

      Thermoplastic tubing with long peristaltic life and low permeability. 5 ºC to 80 ºC (23 ºF to 176 ºF).

      Tubing - peristaltic

    5. Pumpsil tubing

      Pumpsil tubing

      Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -20 ºC to 80 ºC (-4 ºF to 176 ºF).

      Tubing - peristaltic

    Related Products

    1. 100 series pumpheads

      100 series pumpheads

      Iconic flip-pumps for low flows up to 510 ml/min. Accurate flow performance to medium pressures.

      Pumpheads

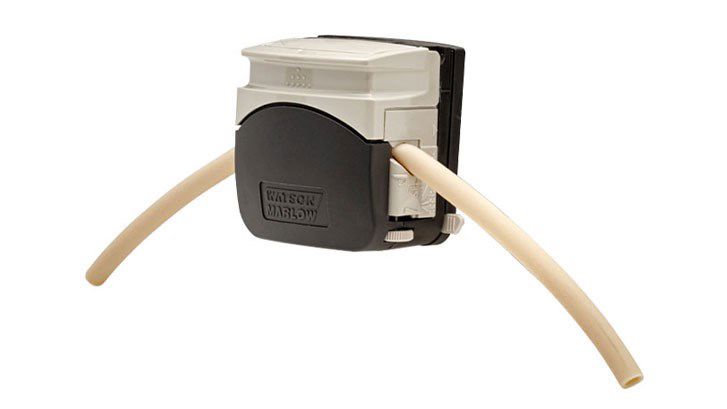

    2. 300 series pumpheads

      300 series pumpheads

      Iconic flip-top pumps for medium flows to 2,000 ml/min. Extendable up to 6 channels.

      Pumpheads

    3. 300MC pumpheads

      300MC pumpheads

      High accuracy microcassettes for manifold tubing for flow rates up to 53 ml/min.

      Pumpheads

    5. 400M series pumpheads

      400M series pumpheads

      One to eight channel pumps for medium flows to 200 ml/min. Compact design and Luer connectors for 'fit and forget' applications.

      Pumpheads

    Our specialists are here to help you succeed.

    To order a product or ask a question

    Contact our experts
