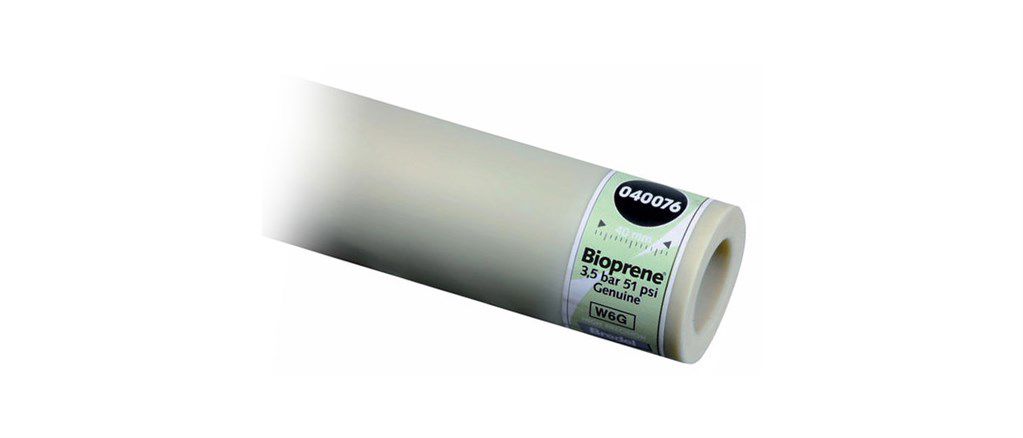

Bredel Bioprene hose

Order a sample

Overview

Bioprene hose elements

The hose element is critical to ensure pump performance, durability and efficiency. Bredel composite reinforced hoses are constructed from high-quality compounded rubbers reinforced with four individual layers of braided nylon, and finished by high-precision machining. Inner and outer layers are extruded and, after construction, machined to ensure critical tolerances are maintained. Meets FDA standards, resistant to alcohols, acids and oxidising products.

Perfect 100 % compression eliminates slippage which can destroy shear sensitive product and reduce metering accuracy.

Chemical Compatibility Guide

Features and benefits

Tight tolerances for low stress on bearings
Perfect compression for long life
Excellent suction performance – 9 m (30 ft) suction lift
High pressure capability – 3.5 bar (51 psi)
Repeatable volumetric accuracy to ± 1 %
Consistent capacity independent of varying suction and discharge conditions
Exceptional performance when handling high viscosity product
Max. fluid temperature: 60 °C (140 °F), Min. fluid temperature: 0 °C (32 °F)

Technical summary

Max. operating pressure	3.5 bar
Max. operating pressure	51 psi
Bore size	40 - 50 mm
Bore size	1.57 - 1.97 in
Wall thickness	13 - 14 mm
Wall thickness	0.512 - 0.551 in

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Specifications

Technical specifications

	40 mm	50 mm
Max. operating pressure	3.5 bar	3.5 bar
Max. operating pressure	51 psi	51 psi
Suction pressure	0.5 bar abs	0.5 bar abs
Suction pressure	7 psi abs	7 psi abs
Operating temperature range	5 to 45 °C	5 to 45 °C
Operating temperature range	41 to 113 °F	41 to 113 °F
Fluid temperature range	5到80°C	5到80°C
Fluid temperature range	41 to 176 °F	41 to 176 °F
Bore size	50 mm	40 mm
Bore size	1.97 in	1.57 in
Wall thickness	14 mm	13 mm
Wall thickness	0.551 in	0.512 in
Length	71.7 in	58.7 in

Your local Bredel sales office/distributor can advise the right hose for your application. For best pump performance use Bredel Genuine Hose Lubricant (NSF Non food Compound Program Listed, category H1)
