Hose pump elements

NR Transfer hose

Order a sample

Overview

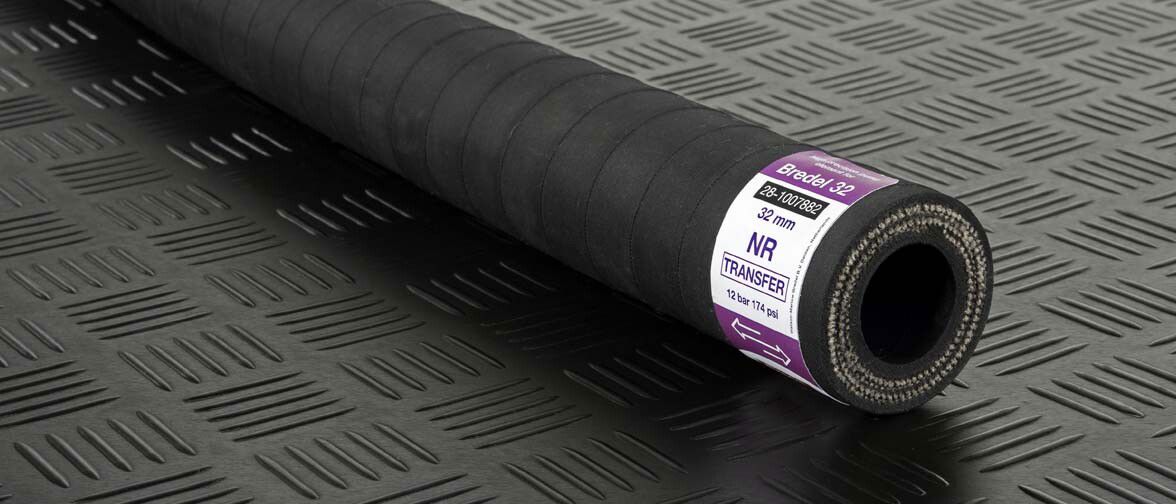

Natural rubber (NR) Transfer hose elements

Manufactured for maximum service life. Suitable for fluid transfer applications. Excellent abrasion resistance. Manufactured to tight tolerances.

Examples of compatible media:

Sludges
Slurries
Food waste

Chemical Compatibility Guide

Features and benefits

Manufactured for maximum service life
Exceptional long hose life in fluid transfer applications
Excellent abrasion resistance
Manufactured to tight tolerances
Pressure capability up to 12 bar (174 psi)
Suction capability up to 9 mWC (354 inWC)
Max. fluid temperature: 80 °C (176 °F), Min. fluid temperature: -20 °C (-4 °F)

Technical summary

Max. operating pressure	12 bar
Max. operating pressure	174 psi
Bore size	25 - 100 mm
Bore size	0.98 - 3.94 in
Wall thickness	13 - 21.5 mm
Wall thickness	0.51 - 0.85 in

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Specifications

Technical specifications

	NR转移软管25	NR Transfer hose 32	NR Transfer hose 40	NR Transfer hose 50	NR Transfer hose 65	NR Transfer hose 80	NR Transfer hose 100
Max. operating pressure	12 bar	12 bar	12 bar	12 bar	12 bar	12 bar	12 bar
Max. operating pressure	174 psi	174 psi	174 psi	174 psi	174 psi	174 psi	174 psi
Max. suction capability	9 m/H₂O	9 m/H₂O	9 m/H₂O	9 m/H₂O	9 m/H₂O	8 m/H₂O	6 m / H₂O
Max. suction capability	354 in/H₂O	354 in/H₂O	354 in/H₂O	354 in/H₂O	354 in/H₂O	315 in/H₂O	236 in/H₂O
Suction capability (80% Flow rate)	8 m/H₂O	8 m/H₂O	8 m/H₂O	6 m / H₂O	6 m / H₂O	5 m/H₂O	4 m/H₂O
Suction capability (80% Flow rate)	315 in/H₂O	315 in/H₂O	315 in/H₂O	236 in/H₂O	236 in/H₂O	197 in/H₂O	157 in/H₂O
Operating temperature range	-20 to 45 °C	-20 to 45 °C	-20 to 45 °C	-20 to 45 °C	-20 to 45 °C	-20 to 45 °C	-20 to 45 °C
Operating temperature range	-4 to 113 °F	-4 to 113 °F	-4 to 113 °F	-4 to 113 °F	-4 to 113 °F	-4 to 113 °F	-4 to 113 °F
Fluid temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Fluid temperature range	-4 to 176 °F	-4 to 176 °F	-4 to 176 °F	-4 to 176 °F	-4 to 176 °F	-4 to 176 °F	-4 to 176 °F
Bore size	25毫米	32 mm	40 mm	50毫米	65 mm	80 mm	100 mm
Bore size	0.98 in	1.26 in	1.57 in	1.97 in	2.56 in	3.15	3.94 in
Wall thickness	13.5毫米	14 mm	13 mm	14.5 mm	16.5 mm	20.5 mm	21.5 mm
Wall thickness	0.53 in	0.55 in	0.51 in	0.57 in	0.65 in	0.81 in	0.85 in
Length	1.02 m	1.27 m	1.51 m	1.85 m	2.37 m	2.82 m	3.31 m
Length	40.16 in	49.8 in	59.45 in	72.64 in	93.19 in	110.83 in	130.31 in
Weight	1.85 kg	2.82 kg	3.6 kg	6.04 kg	11 kg	20.04 kg	29.88 kg
Weight	4.07 lbs	6.19 lbs	7.91 lbs	13.28 lbs	24.2 lbs	44.09 lbs	65.74 lbs

Your local Bredel sales office/distributor can advise the right hose for your application. For best pump performance use Bredel Genuine Hose Lubricant
