Pumps - close-coupled

800 series process pumps

Arrange a demo

Overview

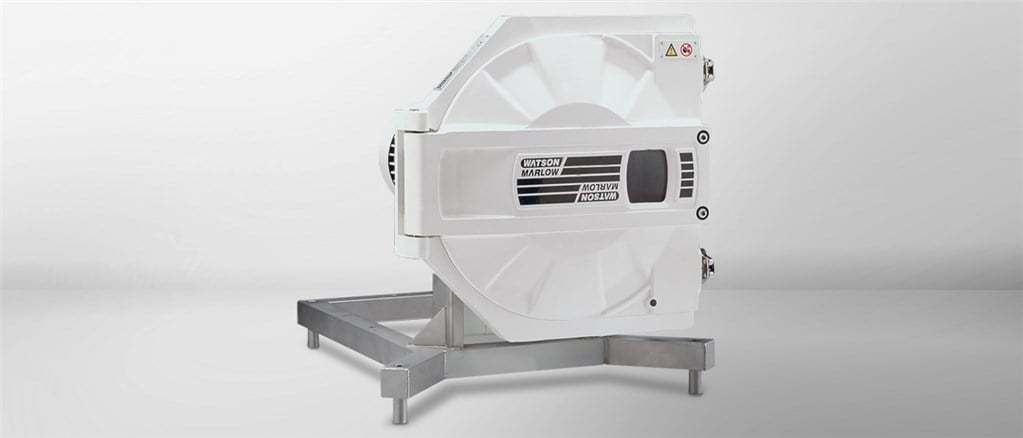

800 series high flow hygienic pumps

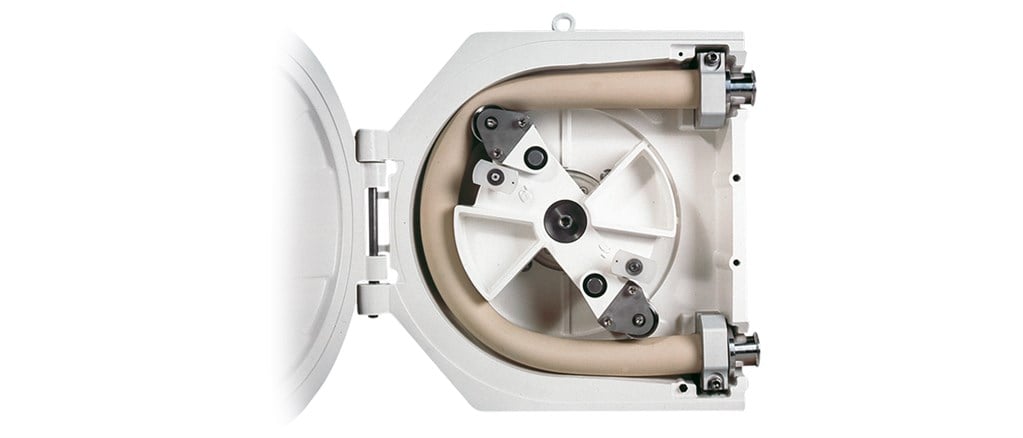

设计用于低切卫生泵的职责to 8,140 L/h (35 GPM) and pressures up to 3.5 bar (50 psi) in the biotechnology, pharmaceutical and food industries, 800 series pumps feature a true CIP (clean-in-place) and SIP (steam-in-place) facility. The twin stainless steel rollers disengage to lift off the USP Class VI Bioprene or GORE STA-PURE PCS tube, allowing a straight-through path for cleaning. There are no "dead spots" or crevices. Mounted on a steel frame, 800 series pumps are available with fixed speed motor gearboxes or inverter-rated variable speed motor gearboxes providing 4-20 mA or 0-10 V process control, as well as remote stop/start and reverse.

Features and benefits

Maximum flow rate of 8140 L/h
CIP/SIP sterilisation at full velocity with no bypass required
Self-priming and dry running, with no valves, seals or glands
Hinged door with only two captive bolts makes tube inspection and change extremely simple and safe
Choice of continuous tubing or elements with hygienic connectors
Ideal for viscous or shear sensitive products
Motor/gearbox and control options include fixed speed, variable speed with mechanical variators, fixed speed motors with inverter control for 4-20 mA and 0-10 V process control, remote stop/start and reverse and frequency output.
Pumpheads接受B5输出法兰连接装置motors in a range of single and three phase fixed and electronic variable speeds

Technical summary

Max. flow rate	8140 L/h
Min. flow rate	162 L/h
Max. operating pressure	3.5 bar
Ambient Temperature Range	5 to 40 °C
Ambient Temperature Range	41 to 104 °F
Motor types	Fixed speed motor, Variable speed motor
Min. operating speed	8 rpm
Max. operating speed	104 rpm
Weight	85 - 130 kg

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Performance

825 series hygienic pump performance

825 series

Speed (rpm)	Flow rate (L/h)	Fitted Motor Power (kW)
8	162	0.37
10	196	0.37
13	260	0.55
17	327	0.55
21	412	0.55
26	507	0.55
28	563	0.55
33	658	0.55
36	721	0.55
40	796	0.55
47	933	0.75
53	1050	0.75
59	1169	0.75
67	1327	0.75
74	1474	1.1
84	1672	1.1
90	1787	1.1
104	2060	1.1

840 series hygienic pump performance

840 series

Speed (rpm)	Flow rate (L/h)	Fitted motor power (kW)
8	653	0.55
10	790	0.55
13	1045	0.55
16	1277	0.55
22	1756	0.75
25	1995	0.75
29	2314	1.1
33	2649	1.1
36	2905	1.1
42	3352	1.1
47	3751	1.5
52	4150	1.5
58	4628	1.5
65	5187	1.5
73	5825	2.2
79	6304	2.2
89	7102	2.2
102	8140	3

Specifications

Technical specifications

	825 series hygienic pump	840 series hygienic pump
Max. flow rate	2060 L/h	8140 L/h
Min. flow rate	162 L/h	653 L/h
Max. operating pressure	3.5 bar	3.5 bar
Ambient Temperature Range	5 to 40 °C	5 to 40 °C
Ambient Temperature Range	41 to 104 °F	41 to 104 °F
Fluid temperature range	0 to 80 °C	0 to 80 °C
Fluid temperature range	-32 to 175 °F	-32 to 175 °F
Motor types	Fixed speed motor, Variable speed motor	Fixed speed motor, Variable speed motor
Min. operating speed	8 rpm	8 rpm
Max. operating speed	104 rpm	102 rpm
Noise	<75dB(A) at 1m	<75dB(A) at 1m
Weight	85 kg	130 kg

825 series hygienic pump dimensions

840 series hygienic pump dimensions

Materials of construction

Pumphead body assembly	Aluminium alloy with epoxy polyester powder coat finish
Pumphead roller assembly	Stainless steel 316
Pumphead rotor assembly	Aluminium alloy with epoxy polyester powder coat finish, Stainless steel 316
Fixings	Stainless steel, Zinc plated high tensile steel
Support frame	Stainless steel 304
