Pumps - cased pumps

500 series cased pump

Arrange a demo
Arrange a demo

Overview

500 series process pumps

530 series peristaltic pumps deliver unrivalled accuracy with simple-to-use HMI requiring minimal key presses during operation. Fluid is fully contained within the tube, providing complete isolation of the pump. Maintain product integrity with visual status indication and an intuitive user interface.

Pumphead options available as standard (others available on request):

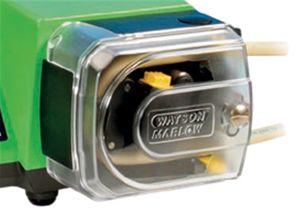

  • 520R and 520R2 pumpheads for continuous tubing

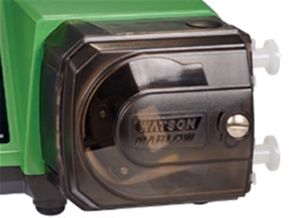

  • 520REL, 520REM, 520REH and RET pumpheads for tube elements (for low, medium and high pressures)
  • 505L dual channel low pulse, high accuracy dispensing pumphead

Features and benefits

  • Colour display and intuitive menu structures provide visual status indication and minimal key presses
  • Flow rates from 0.004 ml/min (0.0006 USGPH) to 3.5 L/min (55.48 USGPH)
  • 520R, 520R2, 520REL, 520REM, 520REH, 520RET and 505L pumpheads available as standard, others available on request
  • 2,200:1 speed control range from 0.1 to 220 rpm in 0.1 rpm increments
  • Keypad incorporates 3-level security PIN lock
  • IP31 (NEMA 2) and IP66 (NEMA 4X) cased pumps
  • Dual voltage, 115 V/230 V 50/60 Hz
  • Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™ control options

Technical summary

Max. flow rate 3500 ml/min
Min. flow rate 0.004 ml/min
Max. flow rate 56 USGPH
Min. flow rate 0 USGPH
Drive speed control ratio 2200:1
Operating temperature range 5 to 40 °C
Operating temperature range 40 to 104 °F
Control types EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA
Drive standards CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS
Drive ingress rating IP31, IP66, NEMA 2, NEMA 4X
Drive power supply 115/230 V 1ph 50/60 Hz 135 VA
Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

530 Drive with 520R Pumphead performance

520R twin sprung roller pumpheads for continuous 1.6 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm 0.004-9.5 (0–0.15) 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) NA
Marprene®, Bioprene®, PureWeld XL® 0.1–220rpm 0.004-9.0 (0–0.14) 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) NA
520R2 twin sprung roller pumpheads for continuous 2.4 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm NA 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) 1.60-3500 (0.03–55.5)
Marprene®/Bioprene®, PureWeld XL® 0.1–220rpm NA 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) 1.50-3300 (0.02–52.3)

530 Drive with 520REL Pumphead performance

520年rel双滚轮pumphead为LoadSure®元素tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8) 1.60-3500 (0.03–55.5)
Marprene® TL, Bioprene® TL 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8) 1.50-3300 (0.02–52.3)

530 Drive with 520REM Pumphead performance

520REM twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8)
Marprene® TM, Bioprene® TM 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8)

530 Drive with 520REH Pumphead performance

520REH twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
Tube material Speed rpm 3.2mm
Marprene® TH, Bioprene® TH, GORE® STA-PURE® Pump Tubing – Series PCS 0.1 to 220 0.20-450 (0–7.13)

530 Drive with 520RET Pumphead performance

520RET twin-roller pumpheads for Maxthane®LoadSure®elements tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2 mm 6.4 mm 9.6 mm
Maxthane® 0.1-220 rpm 0.24-520 (0-8.24) 0.75-1600 (0.01-25.4) 1.3-2900 (0.02-46.0)

Specifications

Technical specifications

530 Drive with 520R Pumphead 530 Drive with 520R2 Pumphead 530 Drive with 520REL Pumphead 530 Drive with 520REM Pumphead 530 Drive with 520REH Pumphead 530 Drive with 520RET Pumphead
Pumphead number of rollers 2 2 2 2 2 2
Pumphead number of channels 1 1 1 1 1 1
Max. flow rate 2400 ml/min 3500 ml/min 3500 ml/min 1500 ml/min 450 ml/min 2900 ml/min
Min. flow rate 0.004 ml/min 0.04 ml/min 0.17 ml/min 0.17 ml/min 0.2 ml/min 0.24 ml/min
Max. flow rate 38.4 USGPH 56 USGPH 56 USGPH 24 USGPH 7.2 USGPH 46 USGPH
Min. flow rate 0.0006 USGPH 0.0006 USGPH 0.0027 USGPH 0.0027 USGPH 0.0031 USGPH 0 USGPH
Drive speed control ratio 2200:1 2200:1 2200:1 2200:1 2200:1 2200:1
Drive speed 0.1 - 220 rpm 0.1 - 220 rpm 0.1 - 220 rpm 0.1 - 220 rpm 0.1 - 220 rpm 0.1 - 220 rpm
Operating temperature range 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C
Operating temperature range 40 to 104 °F 40 to 104 °F 40 to 104 °F 40 to 104 °F 40 to 104 °F 40 to 104 °F
Weight 10.6 - 11.5 kg 10.6 - 11.5 kg 10.5 - 11.4 kg 10.5 - 11.4 kg 10.5 - 11.4 kg 10.5 - 11.4 kg
Weight 23.4 - 25.4 lbs 23.4 - 25.4 lbs 23.2 - 25.1 lbs 23.2 - 25.1 lbs 23.2 - 25.1 lbs 23.2 - 25.1 lbs
Drive weight 9.82, 10.7 kg 9.82, 10.7 kg 9.82, 10.7 kg 9.82, 10.7 kg 9.82, 10.7 kg 9.82, 10.7 kg
Drive weight 21.6, 23.6 lbs 21.6, 23.6 lbs 21.6, 23.6 lbs 21.6, 23.6 lbs 21.6, 23.6 lbs 21.6, 23.6 lbs
NEMA module weight 0.9 kg 0.9 kg 0.9 kg 0.9 kg 0.9 kg 0.9 kg
NEMA module weight 2 lbs 2 lbs 1.9 lbs 1.9 lbs 1.9 lbs 1.9 lbs
Control types EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA
Drive control options Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, Pn, PnN, S, SN, U, UN, US Bp, BpN, Du, DuN, En, EnN, Pn, PnN, S, SN, U, UN
Drive standards CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and LoadSure elements), RoHS
Drive ingress rating IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X
Drive humidity (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Drive noise <70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m
Max. altitude 2000 m 2000 m 2000 m 2000 m 2000 m 2000 m
Drive power supply 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA
Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8 mm 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm 3.2, 6.4, 9.6 mm 3.2, 6.4 mm 3.2 mm 3.2, 6.4, 9.6 mm

Materials of construction

Bearings Stainless steel
Drive shaft Electroless nickel plated carbon steel
Drain port assembly Hytrel, PP (polypropylene)
Drive casework Pressure die-cast aluminium LM24
Drive casework coating Alocrom pre-treatment, Exterior grade polyester powder coat
Guide roller assembly MoS2 filled Nylon 6 (Nylatron)
Drive keypad/HMI Polyester
Drive rear blanking plate Stainless steel 304
Pumphead guard Polycarbonate
Pumphead roller assembly MoS2 filled Nylon 6 (Nylatron), PPS (polyphenylene sulphide), Stainless steel 316
Pumphead rotor assembly PPS (polyphenylene sulphide), Stainless steel 316
Pumphead track PPS (polyphenylene sulphide)
Seals Neoprene, PTFE
Pumphead seals Neoprene, PTFE
Switch-plate Glass filled ABS plastic

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Control

Control options

Key to pump drive models
530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
Standard Standard IP66 / NEMA 4X Universal Universal IP66 / NEMA 4X Digital Universal Digital Universal IP66 / NEMA 4X Bus Pump / Profibus Bus Pump / Profibus IP66 / NEMA 4X Universal SCADA / IP66 / NEMA 4X Digital Universal SCADA / IP66 / NEMA 4X EtherNet/IP EtherNet/ IP / IP66 / NEMA 4X PROFINET® PROFINET® / IP66 / NEMA 4X
Manual control
Pump drive 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
Intuitive keypad and colour display ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Choice of flowrate or speed display ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Full calibration with choice of flow units ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
MemoDose function ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Auto restart facility ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Leak detection ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Dispensing (Network Control) ✔ ✔ ✔ ✔
Remote control
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
Configurable Start/Stop, leak detector and pressure switch input via contact closure or 5 V TTL or 24 V industrial logic ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Configurable Start/Stop, leak detector and pressure switch input via 110 V industrial logic ✔ ✔
Direction change and auto/manual toggle input via contact closure or 5 V TTL or 24 V industrial logic ✔ ✔ ✔ ✔
Direction change and auto/manual toggle input via 110 V industrial logic ✔ ✔
Remote operation of MemoDose (foot/hand‑switch or logic input) ✔ ✔ ✔ ✔
Four configurable digital status outputs through 24 V, 30 W relays ✔ ✔
Four configurable digital status outputs through 110 V relays ✔ ✔
Menu configurable logic outputs ✔ ✔
Remote pressure/flow sensors ✔ ✔ ✔ ✔

Analogue speed control
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
Fully configurable inputs; 0-10 V or 4-20 mA ✔ ✔ ✔ ✔ ✔ ✔
Analogue outputs; 0-10 V, 4-20 mA ✔ ✔ ✔ ✔ ✔ ✔
Keypad/analogue input scaling (replacement of diaphragm pumps) ✔ ✔ ✔
Tacho frequency output; 0-991 Hz ✔ ✔ ✔ ✔
2x sensor inputs 4-20 mA or 0-1000Hz* ✔ ✔ ✔ ✔
Security
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
3-level Security PIN lock ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Network communication
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
RS485 network control ✔ ✔
RS232 network control ✔
Digital pump commands (Profibus / EtherNet/IP)
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN 530Pn 530PnN
PROFIBUS® DP V0 ✔ ✔
PROFINET® (CC-B & Netload Class III) ✔ ✔
EtherNet/IP™ ✔ ✔
Communication speeds from 9.6 kbits/s up to 12000 kbits/s ✔ ✔
Network speed: 10/100 Mbps - Full Duplex Operation ✔ ✔
Network speed: 100 Mbps - Full Duplex Operation ✔ ✔
Auto-detect bus speed ✔ ✔
速度设定值 ✔ ✔ ✔ ✔ ✔ ✔
Speed feedback ✔ ✔ ✔ ✔ ✔ ✔
Flow calibration function ✔ ✔ ✔ ✔ ✔ ✔
Hours run ✔ ✔ ✔ ✔ ✔ ✔
Revolution counter ✔ ✔ ✔ ✔ ✔ ✔
Leak detection ✔ ✔ ✔ ✔ ✔ ✔
Low fluid level alarm ✔ ✔ ✔ ✔ ✔ ✔
Diagnostic feedback ✔ ✔ ✔ ✔ ✔ ✔
Flow Totaliser ✔ ✔ ✔ ✔
Sensor scaling ✔ ✔ ✔ ✔
Dipensing(网络控制)* * ✔ ✔ ✔ ✔

*第三方压力/流量传感器supporte范围d—see compatible sensor list on m.corinneray.com/literature

* *调剂(网络/手动)-圣ore up to 100 recipes locally or via network control. Features include volume, flow rate, anti-drip, ramp and time delays. Run these as batches using local, network or manual keypad control.

Literature

Brochures

  1. Water and wastewater industry (EN).pdf
    PDF - 582.2kb
  2. Industrial EtherNet flyer (EN).pdf
    PDF - 314.2kb

Datasheet

  1. 530 Drive with 520REL pumphead datasheet (EN).pdf
    PDF - 1.5mb
  2. 530 Drive with 520RET pumphead datasheet (EN).pdf
    PDF - 1.5mb
  3. 530 Drive with 520R pumphead datasheet (EN).pdf
    PDF - 1.6mb
  4. 530 Drive with 520R2 pumphead datasheet (EN).pdf
    PDF - 1.6mb
  5. 530 Drive with 520REM pumphead datasheet (EN).pdf
    PDF - 1.5mb
  6. 530 Drive with 520REH pumphead datasheet (EN).pdf
    PDF - 1.4mb

Manuals

  1. 530 En-EnN manual (EN).pdf
    PDF - 2.9mb
  2. 530 S-SN manual (EN).pdf
    PDF - 2.1mb
  3. 530 U-UN manual (EN).pdf
    PDF - 3.8mb
  4. 530 Du-DuN manual (EN).pdf
    PDF - 4mb
  5. 530 Pn-PnN manual (EN).pdf
    PDF - 3mb
  6. 530 Bp-BpN manual (EN).pdf
    PDF - 2.3mb

Other Resources

  1. 530,630,730 Ethernet IP EDS Rev 2.1.eds
    EDS - 111.2kb
  2. 530,630,730 Ethernet IP EDS Rev 2.2.eds
    EDS - 113.3kb
  3. 530-630-730-EtherNetIP-pump-rev-2.5.eds
    EDS - 113.9kb
  1. PROFIBUS (GSD) 530-630-730 control file.gsd
    GSD - 2.6kb
  1. Watson-Marlow 530, 630, 730 EtherNet-IP™ and PROFINET® compatible sensor list (EN).pdf
    PDF - 235.2kb
  2. 530,630,730 PROFINET® compatibility guide.pdf
    PDF - 65.7kb
  3. 530,630,730 EtherNet IP EDS compatibility guide.pdf
    PDF - 68.6kb
  1. gsdml-v2-4-watson-marlow-530_630_730-profinet-pump-20211116.zip
    ZIP - 5.6kb
  1. GSDML-059F-0001-WMPEPSI-01.bmp
    BMP - 8.4kb

Take a tour

Drives

Simple-to use HMI requiring minimal key presses to reduce chances of costly errors. Flow proportional to pump speed over 2,200:1 control range. IP31 and IP66 cased pumps for washdown environments.

  • 530S - IP31 and 530SN - IP66are simple, plug-in and switch on pumps offering economy of ownership. Ultimate process security with a 3 level PIN lock.
  • 530U - IP31 and 530UN - IP66with all the features of the S/SN models, plus configurable inputs and outputs.
  • 530Du - IP31 and 530DuN - IP66with configurable inputs and outputs, plus RS232 and RS484.
  • 530Bp - IP31 and 530BpN - IP66Real time communication makes your process secure and flexible. Bus speed 9.6 kbits/s up to 12,000 kbits/s connectivity
  • 530En - IP31 and 530EnN - IP66 EtherNet/IPconnectivity for fast and easy access to pump data over Industrial Ethernet
  • 530Pn - IP31 and 530PnN - IP66 PROFINETconnectivity for fast and easy access to pump data over Industrial Ethernet

Order Information

Product codes

530 Drive with 520R Pumphead product codes

Tubing 1.6 mm wall thickness tubing for 520R
Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
0.5mm (1/50in) 112 913.A005.016 941.0005.016 933.0005.016 NA 902.0005.016
0.8mm (1/32in) 13 913.A008.016 941.0008.016 933.0008.016 902.0008.016
1.6mm (1/16in) 14 913.A016.016 941.0016.016 933.0016.016 961.0016.016 966.0016.016 902.0016.016
3.2mm (1/8in) 16 913.A032.016 941.0032.016 933.0032.016 961.0032.016 966.0032.016 902.0032.016
4.8mm (3/16in) 25 913.A048.016 941.0048.016 933.0048.016 961.0048.016 966.0048.016 902.0048.016
6.4mm (1/4in) 17 913.A064.016 941.0064.016 933.0064.016 961.0064.016 966.0064.016 902.0064.016
8.0mm (5/16in) 18 913.A080.016 941.0800.016 933.0080.016 961.0080.016 966.0080.016 902.0080.016

530 Drive with 520R2 Pumphead product codes

Tubing 2.4 mm wall thickness tubing for 520R2
Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
1.6mm (1/16in) 119 913.A016.024 NA 933.0016.024 961.0016.024 966.0016.024 902.0016.024
3.2mm (1/8in) 120 913.A032.024 933.0032.024 961.0032.024 966.0032.024 902.0032.024
4.8mm (3/16in) 15 913.A048.024 933.0048.024 961.0048.024 966.0048.024 902.0048.024
6.4mm (1/4in) 24 913.A064.024 941.0064.024 933.0064.024 961.0064.024 966.0064.024 902.0064.024
8.0mm (5/16in) 121 913.A080.024 NA 933.0080.024 961.0080.024 966.0080.024 902.0080.024
9.6mm (3/8in) 122 913.A096.024 933.0096.024 961.0096.024 966.0096.024 902.0096.024

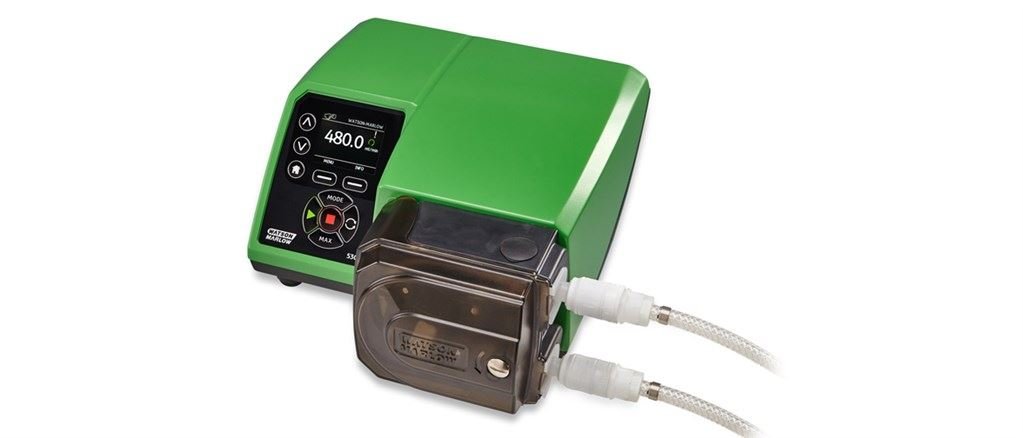

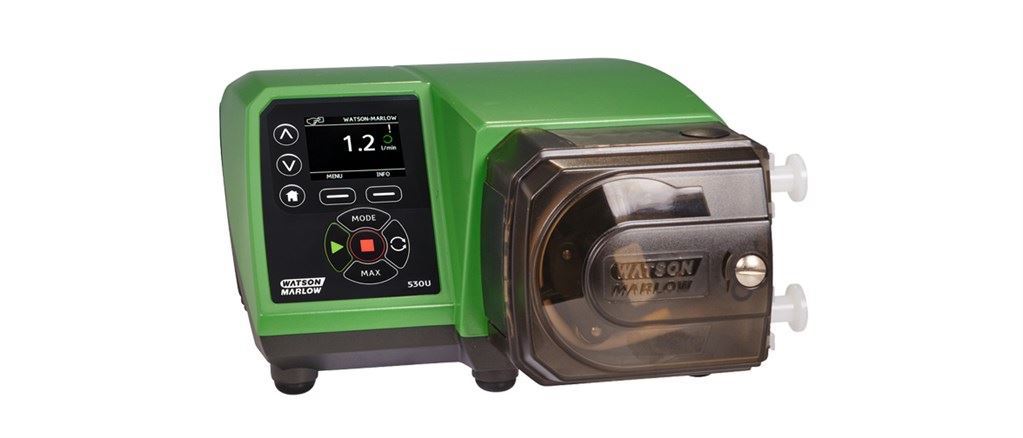

530 Drive with 520REL Pumphead product codes

Element product codes for 520REL
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 9.6mm 3.2mm 6.4mm 9.6mm
Pumpsil® 913.A032.PFQ 913.A064.PFQ 913.A096.PFQ 913.A032.PFT 913.A064.PFT 913.A096.PFT
Bioprene® TL 933.0032.PFT 933.0064.PFT 933.0096.PFT
Marprene® TL 902.0032.PFQ 902.0064.PFQ 902.0096.PFQ
STA-PURE® Series PCS 961.0032.PFT 961.0064.PFT 961.0096.PFT
STA-PURE® Series PFL 966.0032.PFQ 966.0064.PFQ 966.0096.PFQ 966.0032.PFT 966.0064.PFT 966.0096.PFT

530 Drive with 520REM Pumphead product codes

Element product codes for 520REM
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 3.2mm 6.4mm
Bioprene® TM 933.P032.PFT 933.P064.PFT
Marprene® TM 902.P032.PFQ 902.P064.PFQ
STA-PURE® Series PCS 961.M032.PFT 961.M064.PFT
STA-PURE® Series PFL 966.M032.PFQ 966.M064.PFQ 966.M032.PFT 966.M064.PFT

530 Drive with 520REH Pumphead product codes

Element product codes for 520REH
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 3.2mm
Bioprene® TH 933.H032.PFT
Marprene® TH 902.H032.PFQ
STA-PURE® Series PCS 961.H032.PFQ 961.H032.PFT

530 Drive with 520RET Pumphead product codes

Element product codes for 520RET
Sanitary LoadSure®元素,3/4在圣itary PVDF connectors
3.2 mm 6.4 mm 9.6 mm
Maxthane®0-2 bar (0-30 psi) - - 945.0096.PFT
Maxthane®0-4 bar (0-60 psi) - 945.0064.PFT -
Maxthane®0-7 bar (0-100 psi) 945.0032.PFT - -

Recommended Products

  1. Marprene tubing

    Marprene tubing

    Thermoplastic elastomer tubing especially resistant to oxidizing agents. 5 ºC to 80 ºC (23 ºF to 176 ºF) to 7 bar (100 psi).

    Tubing - peristaltic

Related Products

  1. 630 process pumps

    630 process pumps

    Flow rates to 18 L/min (4.76 USGPM) and pressures up to 4 bar (60 psi). Precise 2,650:1 speed control range.

    Pumps - cased pumps

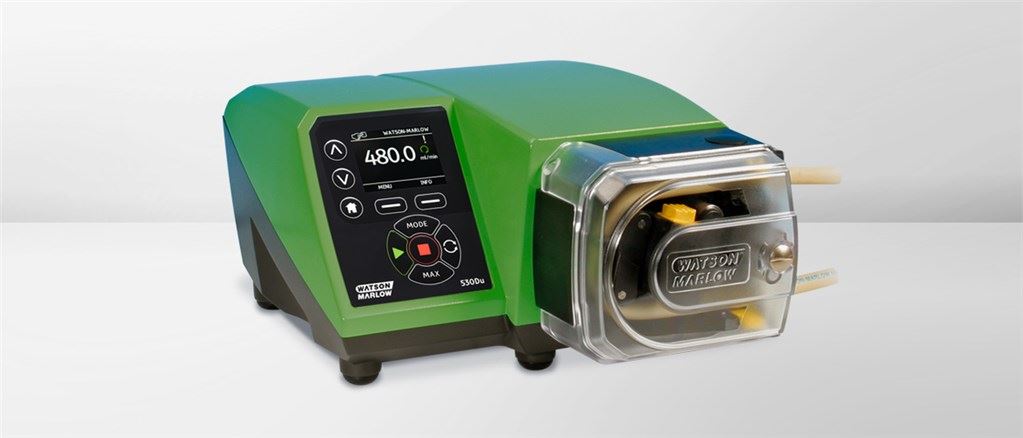

530 process pump: self-contained and easily integrated into your process control system.

To order a product or ask a question

Contact our experts
