Overview

OEM fillers

OEM peristaltic fillers

Flexicon OEM units offer a flexible and reliable filling solution for the biopharmaceutical and diagnostic industries. A closed fluid path removes the risk of cross-contamination. OEM peristaltic fillers are the ideal choice for contract filling for clinical trials or cGMP production environments.

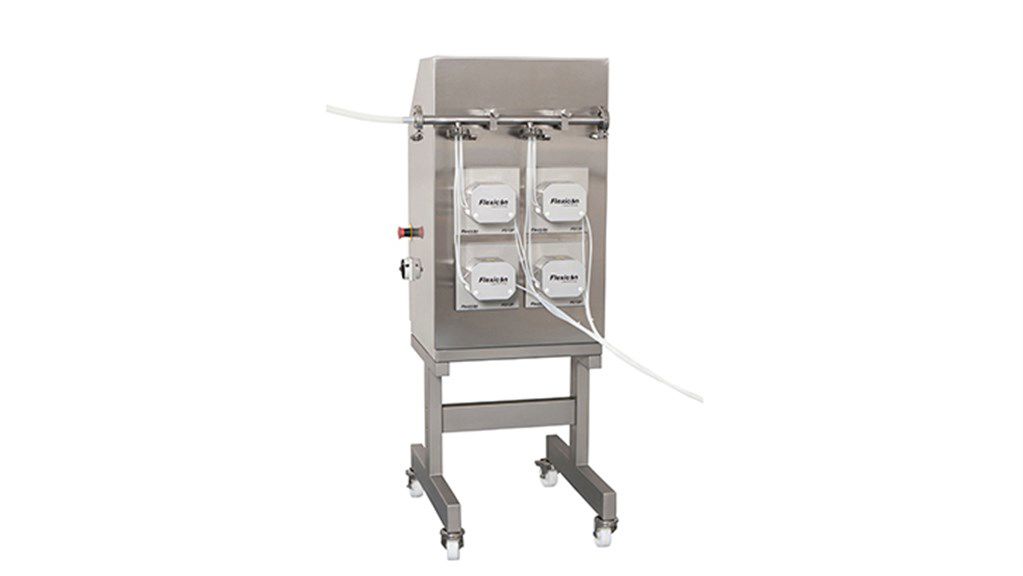

Designed for intensive use for a fast return on investment OEM filling units can fill simultaneously with up to 15 peristaltic fillers (of the same model).

PD series OEM pumpheads

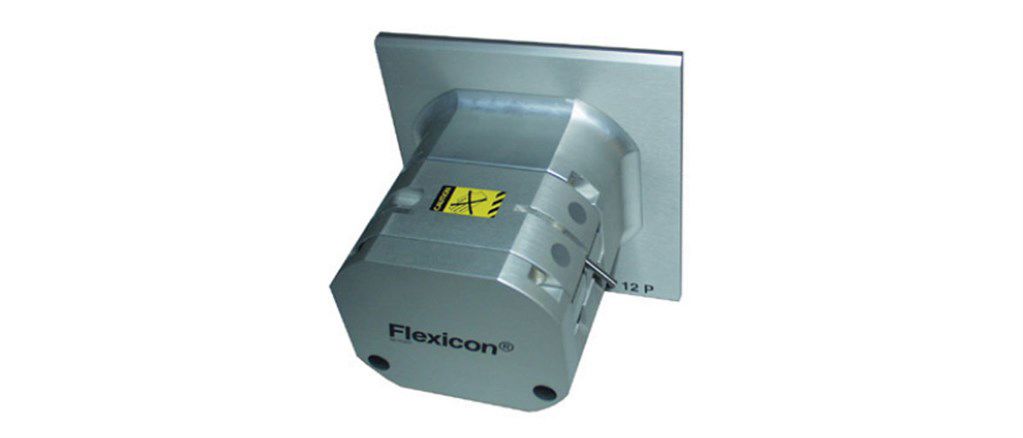

Designed for horizontal orientation PD12P OEM fillers can fill volumes from micro volumes to more than 8.45 fl oz. PD12 series pumpheads are optimized to work with Accusil platinum cured silicone tubing and asepticsu single-use assemblies. PD12PS provide a vertical integration option.

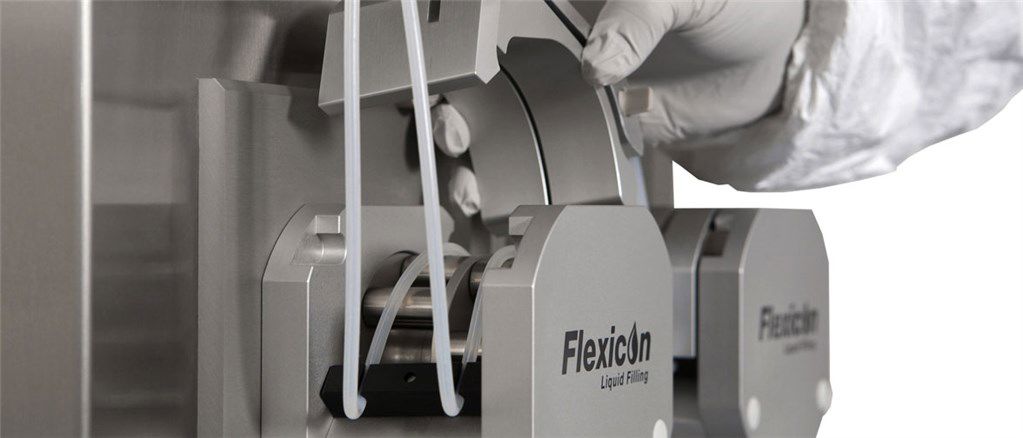

PD12 OEM fillers are available in anodized aluminum and stainless steel and allow for vertical or horizontal integration. For use close to the filling station, the rounded surface of PD12 OEM pumpheads offers easy cleaning. A unique gasket ensures a high degree of ingress protection.

PD22P OEM fillers can fill volumes from less than 0.17 fl oz to more than 169.07 fl oz.

Features and benefits

Filling accuracy of +/- 0.5 %
没有泡沫,溅or dripping between fills
Controlled by MC12 or MC100

Technical summary

Flow	150-11000, 850-4200
Filling volume range	0.1-250, 5-5000, Up to more than 1 litre ml
Ingress rating	IP42, IP54
Accuracy	±0.5 %
Power supply	110/230 VAC, 50/60 Hz
Compatible tubing size	0.5 mm ID, 0.5-8.0 mm ID, 0.8 mm ID, 1.2 mm ID, 1.6 mm ID, 10.0 mm ID, 12.5 mm ID, 3.0 mm ID, 3.2 mm ID, 4.8 mm ID, 5.0 mm ID, 6.0 mm ID, 6.5 mm ID, 8.0 mm ID

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

	PD12OEM	PD12P	PD12PS	PD22P	EBU250	PD12l	PD22l
Flow		850-4200	850-4200	150-11000
Filling volume range					Up to more than 1 litre ml	0.1-250 ml	5-5000 ml
Ingress rating		IP54	IP54	IP54	IP42	IP54	IP54
Accuracy		±0.5 %	±0.5 %	±0.5 %		±0.5 %	±0.5 %
Power supply		110/230 VAC	110/230 VAC	110/230 VAC, 50/60 Hz	110/230 VAC	110/230 VAC, 50/60 Hz	110/230 VAC, 50/60 Hz
Power consumption		Max 150 W	Max 150 W	Max 350 W	Max 150 W	Max 150 W	Max 350 W
Interface		RS-485 multi-drop network; 1 x (5-50 VDC) input for start; 1 x (24 V/100mA) input for disabling drive; 2 x open collector outputs for status	RS-485 multi-drop network; 1 x (5-50 VDC) input for start; 1 x (24 V/100mA) input for disabling drive; 2 x open collector outputs for status	RS-485 multi-drop network; 1 x (5-50 VDC) input for start; 1 x (24 V/100mA) input for disabling drive; 2 x open collector outputs for status
Weight		12 kg	12 kg	24 kg	25 kg	12 kg	24 kg
Weight		26 lbs	26 lbs	53 lbs	55 lbs	26 lbs	53 lbs
Accessories	Tubing, Single-use fluid paths, Filling nozzles, Y-Connectors, Weights for tubing, Filling Stand	Filling stands and needles, tubes, foot switch	Filling stands and needles, tubes, foot switch	Filling stands and needles, tubes, foot switch	MC12, PD22或GD30, Tubing, Pneumatic nozzle system, Filling nozzles	Filling stands and meedles, foot switch and tubes	Filling nozzles, filling stands, foot switch and tubes
Tubes	Watson-Marlow Flexicon peroxide or platinum cured silicone tubes	Watson-Marlow Flexicon peroxide or platinum cured silicone tubes	Watson-Marlow Flexicon peroxide or platinum cured silicone tubes	Watson-Marlow Flexicon peroxide or platinum cured silicone tubes with a 2.5 and 3.5mm wall
Compatible tubing size	0.5 mm ID, 0.8 mm ID, 1.2 mm ID, 1.6 mm ID, 3.2 mm ID, 4.8 mm ID, 6.0 mm ID, 8.0 mm ID	0.5 mm ID, 0.8 mm ID, 1.2 mm ID, 1.6 mm ID, 3.2 mm ID, 4.8 mm ID, 6.0 mm ID, 8.0 mm ID	0.5 mm ID, 0.8 mm ID, 1.2 mm ID, 1.6 mm ID, 3.2 mm ID, 4.8 mm ID, 6.0 mm ID, 8.0 mm ID	10.0 mm ID, 12.5 mm ID, 3.0 mm ID, 5.0 mm ID, 6.5 mm ID, 8.0 mm ID		0.5-8.0 mm ID	10.0 mm ID, 12.5 mm ID, 3.0 mm ID, 5.0 mm ID, 6.5 mm ID, 8.0 mm ID

PD12P dimensions

PD12PS dimensions

PD22P dimensions

Materials of construction

Bearings	Stainless steel AISI 304
Cabinet	Anodized aluminum, Stainless steel
Casework	Anodized aluminum, Polyacetal, Stainless steel, Stainless steel AISI 304, Stainless steel AISI 316L
Pumphead roller assembly	Stainless steel AISI 304

Literature

Brochures

PD22P brochure (EN).pdf
PDF - 321.6kb
PD12P brochure (EN).pdf
PDF - 365.6kb

Datasheet

PD12P datasheet (EN).pdf
PDF - 365.6kb
PD22l datasheet (EN).pdf
PDF - 433kb
PD22P datsheet (EN).pdf
PDF - 321.6kb

Manuals

Flexicon PD12l & PD12P manual (EN).pdf
PDF - 738.3kb

Five year warranty

Total confidence in reliability backed with a 5 year warranty

Demonstrating total confidence in product reliability and commitment to customer satisfaction our tabletop fillers carry 5 year warranty.

The extended warranty is valid for these units:

PF7
PF22
PD12I
PD22I
PD12IDH
MC12

For further information on warranty on products from Watson-Marlow Flexicon, please contact your local sales office for a copy of our General Terms of Sale and Delivery.
