400/B series panel mount pumps

Overview

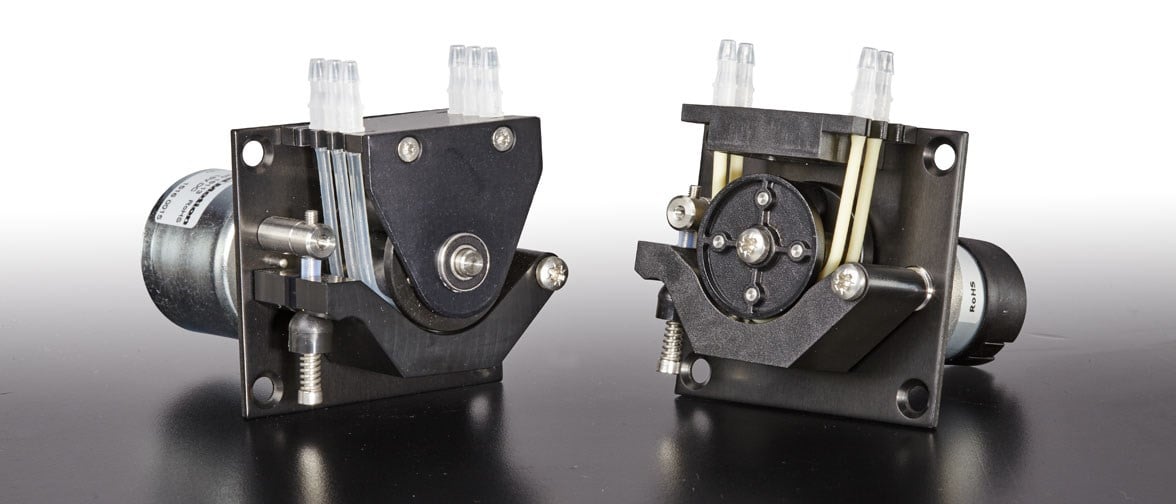

400/B series multi-channel pumps

One, two and three channel instrument-quality peristaltic pumps for low flow rates. The spring-loaded track enables extended tube life and flow-accuracy. The adjustable track arm allows the user to optimize for pressure or tube life. Can operate up to 3 bar. Made from durable materials and is integrated with a range of Brushless, DC and AC motors.

400/B1 single channel pumps

Compatible with 1.6 mm wall thickness continuous tubing in six bore sizes.

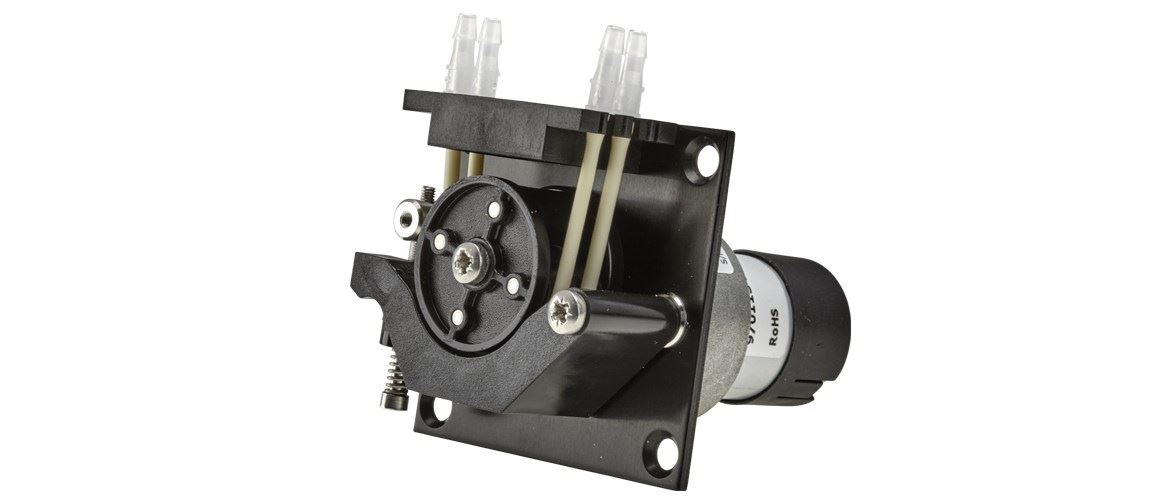

400/D2 and DM2 compact two-channel pumps

The 400/D2 accepts tube elements with a 1.0 mm wall thickness and four bore sizes, allowing the user to precisely match the pump to the required flow. The 400/DM2 works with standard manifold tubing, which is available in 19 bore sizes.

400/D3 and 400/DM3 compact three-channel pumps

The 400/D3 accepts tube elements with a 1.0 mm wall thickness and four bore sizes, allowing the user to precisely match the pump to the required flow. The 400/DM3 works with standard manifold tubing, which is available in 19 bore sizes.

Features and benefits

  • Flow rates up to 236 ml/min
  • Wide range of Brushless, DC and AC motors available
  • Supports a wide range of applications with the multiple channel, continuous tubing, tube element and manifold tubing options.

Technical summary

Motor types Fixed speed DC motor, Stepper motor
Pumphead options B1, D2, D3

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Share

Performance

400FD/D2 performance

Flow rates (ml/min) 1.0 mm wall tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 15 20 25 40 50 75 100 130 200 250
0.5 0.05 0.07 0.13 0.16 0.20 0.26 0.33 0.52 0.65 1.0 1.3 1.7 2.6 3.3
1.0 0.20 0.25 0.50 0.60 0.75 1.0 1.3 2.0 2.5 3.8 5.0 6.5 10 12
2.0 0.72 0.90 1.8 2.2 2.7 3.6 4.5 7.2 9.0 13 18 23 36 45
3.0 1.3 1.7 3.3 4.0 5.0 6.6 8.3 12.7 16 25 33 43 66 82

400FD/D3 performance

Flow rates (ml/min) 1.0 mm wall tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 15 20 25 40 50 75 100 130 200 250
0.5 0.05 0.07 0.13 0.16 0.2 0.26 0.33 0.52 0.65 1.0 1.3 1.7 2.6 3.3
1.0 0.2 0.25 0.5 0.6 0.75 1.0 1.3 2.0 2.5 3.8 5.0 6.5 10 12
2.0 0.72 0.9 1.8 2.2 2.7 3.6 4.5 7.2 9.0 13 18 23 36 45
3.0 1.3 1.7 3.3 4.0 5.0 6.6 8.3 12.7 16 25 33 43 66 82

Specifications

Technical specifications

400FD/D2 400FD/D3 400FD/B 400ST/B
Motor types Fixed speed DC motor Fixed speed DC motor Fixed speed DC motor Stepper motor
Pumphead options D2 D3 B1 B1
Pumphead number of channels 2 3
Min. flow rate 0.05 ml/min 0.05 ml/min
Max. flow rate 82毫升/分钟 82毫升/分钟
Max. operating speed 200 rpm 200 rpm 350 rpm
Supply voltage 12VDC, 24VDC 12VDC, 24VDC 12VDC, 24VDC
Power consumption 5 W 5 W
Gearbox ratio Spur; 30:1, 75:1, 250:1 Spur;15:1;30:1;75:1;250;1
Compatible tubing bore size 0.5, 1, 2, 3 mm 0.5, 1, 2, 3 mm
Compatible tubing wall thickness 1 mm 1 mm

400FD/D2 dimensions

Motor Type 400FD/D2 5 W
Dimensions A L=26.5 mm x Ø39.6 mm
Dimensions B L=81.0 mm* x Ø39.6 mm
*=maximum length behind mounting plate

400FD/D3 dimensions

Motor Type 400FD/D3 5 W
Dimensions A L=26.5 mm x Ø39.6 mm
Dimensions B L=81.0 mm* x Ø39.6 mm
*=maximum length behind mounting plate

Materials of construction

Pumphead rotor assembly Acetal (black)
Pumphead rotor assembly Acetal (black), Acid resistant stainless steel
Pumphead roller assembly Acetal (black)
Pumphead roller assembly Acetal (black)
Pumphead track Acetal (black)
Pumphead track Acetal (black)
Face plate Anodized aluminum
Drive shaft Acid resistant stainless steel
Springs Acid resistant stainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Literature

Datasheet

  1. 400FD3 datasheet (EN).pdf
    PDF - 173.4kb
  2. 400FDM2 datasheet (EN).pdf
    PDF - 132.1kb
  3. 400FB1 datasheet (EN).pdf
    PDF - 76kb
  4. 400FD2 datasheet (EN).pdf
    PDF - 179.3kb
  5. 400年fdm3数据表(EN) . pdf
    PDF - 122.2kb

Order Information

产品codes

400FD/D2 product codes

Pump product codes
Motor type Voltage Speed (rpm) 产品code
Standard DC 5 W 24-30 VDC 100 040.EP1D.N2C
Standard DC 5 W 24-30 VDC 40 040.EH1D.N2C
Standard DC 5 W 24-30 VDC 12 040.E81D.N2C
Economy DC 5 W 24 VDC 200 040.BS1D.N2C
Economy DC 5 W 24 VDC 75 040.BN1D.N2C
Economy DC 5 W 24 VDC 25 040.BC1D.N2C
Brushless DC 5 W 24 VDC 250 040.FT1D.N2C
Brushless DC 5 W 24 VDC 130 040.FQ1D.N2C
Brushless DC 5 W 24 VDC 50 040.FK1D.N2C
Brushless DC 5 W 24 VDC 15 040.F91D.N2C
Syncronous AC 2 W 110 VAC (60 Hz) 25 040.HC1D.N2C
Syncronous AC 2 W 220 VAC (50 Hz) 20 040.JA1D.N2C
Syncronous AC 2 W 110 VAC (60 Hz) 12 040.H81D.N2C
Syncronous AC 2 W 220 VAC (50 Hz) 10 040.J71D.N2C
Syncronous AC 2 W 110 VAC (60 Hz) 5 040.H41D.N2C
Syncronous AC 2 W 220 VAC (50 Hz) 4 040.J31D.N2C

Tubing product codes
Standard 430 tube elements for 400F/D2 and 400F/D3 pumpheads
Bore/Wall Bioprene Peroxide cured Silicone Connects to
0,.5/1.0 mm 049.EF6D.N05 - Tube bore 3.0
1.0/1.0 mm 049.EF6D.N10 049.EH6D.N10 Tube bore 3.0
2.0/1.0 mm 049.EF6D.N20 049.EH6D.N20 Tube bore 3.0
3.0/1.0 mm - 049.EH6D.N30 Tube bore 3.0

400FD/D3 product codes

Pump product codes
Motor type Voltage Speed (rpm) 产品code
Standard DC 5 W 24-30 VDC 100 040.EP1D.N3C
Standard DC 5 W 24-30 VDC 40 040.EH1D.N3C
Standard DC 5 W 24-30 VDC 12 040.E81D.N3C
Economy DC 5 W 24 VDC 200 040.BS1D.N3C
Economy DC 5 W 24 VDC 75 040.BN1D.N3C
Economy DC 5 W 24 VDC 25 040.BC1D.N3C
Brushless DC 5 W 24 VDC 130 040.FQ1D.N3C
Brushless DC 5 W 24 VDC 50 040.FK1D.N3C
Brushless DC 5 W 24 VDC 15 040.F91D.N3C

Tubing product codes
Standard 430 tube elements for 400F/D2 and 400F/D3 pumpheads
Bore/Wall Bioprene Peroxide cured Silicone Connects to
0,.5/1.0 mm 049.EF6D.N05 - Tube bore 3.0
1.0/1.0 mm 049.EF6D.N10 049.EH6D.N10 Tube bore 3.0
2.0/1.0 mm 049.EF6D.N20 049.EH6D.N20 Tube bore 3.0
3.0/1.0 mm - 049.EH6D.N30 Tube bore 3.0
