Overview

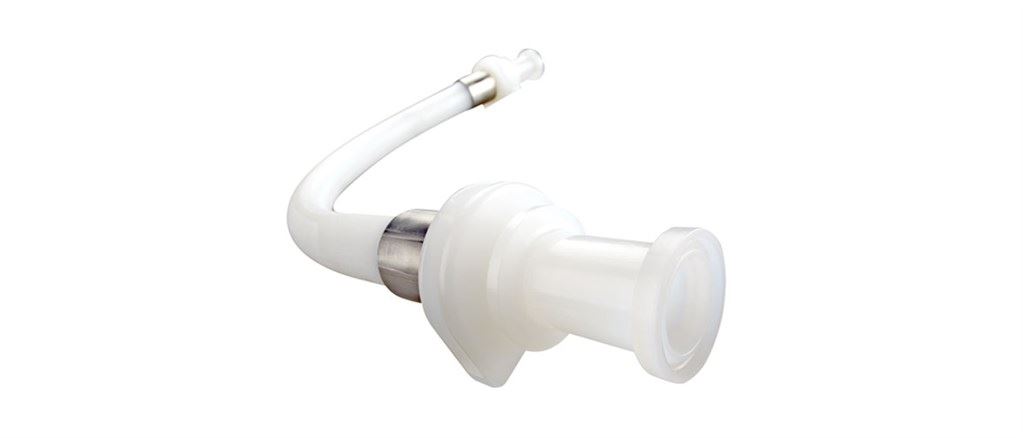

LoadSure tubing elements

When you need a pump with positive connection points and error-free tubing loading, choose Watson-Marlow LoadSure hygienic or industrial tube elements, available for our 530, 630 and 730 series cased pumps.

530 series pumps

LoadSure tube elements are available as high pressure up to 7 bar, medium pressure up to 4 bar and low pressure up to 2 bar. All elements use quick-release PVDF connectors which are colour coded to match the correct pumphead. Element materials include Bioprene and STA-PURE PCS for high pressure, Marprene, Bioprene, STA-PURE PCS and STA-PURE PFL for medium pressure, STA-PURE PCS, STA-PURE PFL, Pumpsil and Neoprene for low pressure.

630 series pumps

LoadSure tube elements are available in two bore sizes of 12 mm and 17 mm and for medium pressures up to 4 bar or low pressure up to 2 bar. All hygienic elements use Tri-clamp style connectors and industrial elements use PVDF Cam & groove connectors. Element materials include Marprene, Bioprene and STA-PURE PCS for medium pressure and Marprene, Bioprene, Pumpsil, STA-PURE PFL and Neoprene for low pressure.

730 series pumps

LoadSure tube elements are available in four bore sizes of 12.7 mm, 15.9 mm, 19.0 mm and 25.4 mm, for pressures up to 2 bar. All hygienic elements use Tri-clamp style connectors and industrial elements use PVDF Cam & groove connectors. Element materials include Marprene, Pumpsil and Neoprene.

Features and benefits

Tube elements are available as high pressure up to 100 psi, medium pressure up to 60 psi and low pressure up to 30 psi
Tri-clamp style or industrial PVDF Cam & groove connectors available
Element materials include Bioprene, Marprene, Pumpsil, STA-PURE PCS, STA-PURE PFL and Neoprene.

Technical summary

Spallation	Fair, Very low
Certification	EC 1935/2004, FDA 21CFR177.1810, FDA 21CFR177.2600, USP <661>, USP <788>, USP <85>, USP Class VI

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

	Marprene elements	STA-PURE PFL elements	PureWeld XL elements
Bore size	1.6 - 25.4 mm	1.6 - 12 mm
Bore size	0.0625 - 1 in	0.0625 - 0.46875 in
Wall thickness	2.4 - 4.8 mm	2.4 - 4 mm
Wall thickness	0.09375 - 0.2 in	0.09375 in
Color	Beige	Off-white
Transparency	Opaque	Opaque	Opaque
Spallation	Fair	Very low	Very low
Certification	FDA 21CFR177.2600		EC 1935/2004, FDA 21CFR177.1810, USP <661>, USP <788>, USP <85>, USP Class VI
Operating temperature range	5到80°C	-20 to 80 °C	-20 to 80 °C
Operating temperature range	41 to 176 °F	-4 to 176 °F	-4 to 176 °F
Hardness, shore A (5sec)	62-68	85+/-10	65-73
Specific gravity	0.95-0.98 g/ml		0.89-0.91 g/ml
UV resistance	Excellent	Excellent	Good
Tear B			30-45 kN/m
Tear B			>148 ppi
Ultimate tensile strength	>798 psi		1450-1930 psi
Elongation at break	340-600 %		>450 %
Tensile stress at 100% elongation			2.4-3.5 Mpa
Tensile stress at 100% elongation			290-435 Psi
Gas permeability rating	Fair
Compression set			74 %
Water absorption	Low	Low
Sterilisation methods		Autoclave, CIP, SIP	Gamma
Weight		0.1 - 0.2 kg	0.2 - 1 kg
Weight			0.44 - 2.2 lbs

Materials of construction

Tubing	Composite of expanded polytetrafluoroethylene (ePTFE) and a platinum-cured perfluoroelastomer, SEBS, Thermoplastic elastomer
Connector material	PP, PVDF
Gasket material	Platinum-cured silicone
Clamp material	Reinforced Nylon 66
