Tubing - peristaltic

Tube elements for panel mount pumps

Order a sample
Order a sample

Overview

Precision tubing for panel mount pumps provides long life and excellent chemical compatibility. Continuous tubing and tube elements are available in seven materials and up to 50 bore/wall thicknesses for the full range of pumps. Our tubing complements our peristaltic pumps and enables our customers to deploy end-to-end solutions for their pumping requirements.

Features and benefits

  • Consistent and accurate flow rates
  • Optimised tube life
  • Tubing elements are optimal fitted to the design of each pump type

Share

Specifications

Technical specifications

400/A tube elements 400/D tube elements 400/M tube elements 400/N tube elements 400/DM tube elements 400/L tube elements 400/VM manifold tube elements
Bore size 0.13 - 2.06 mm 0.5 - 3 mm 1.6 - 4 mm 0.5 - 3 mm 0.8 - 4.8 mm
Wall thickness 0.85 mm 1 mm 1.6 mm 1 mm 1.6 mm
Compatible pumps 400/A 400F/D2, 400F/D3 400F/M1 400F/N2 400F/L2

400/A tube elements dimensions

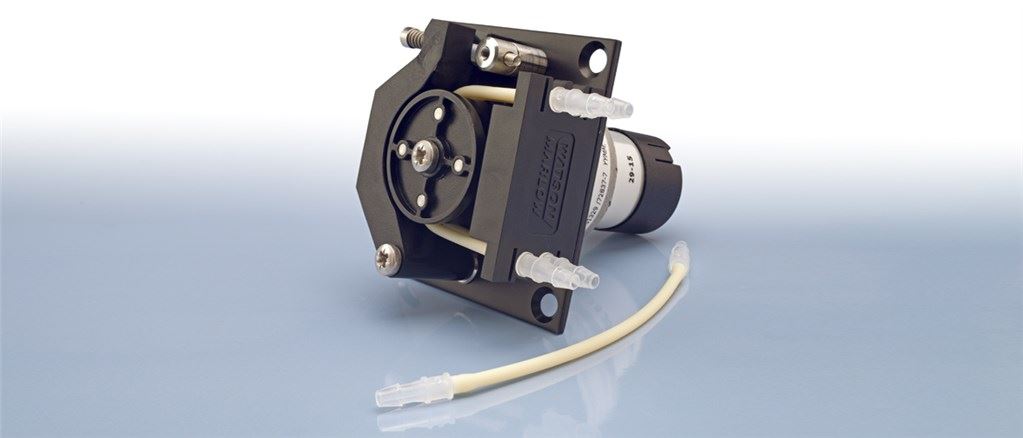

400/D tube elements dimensions

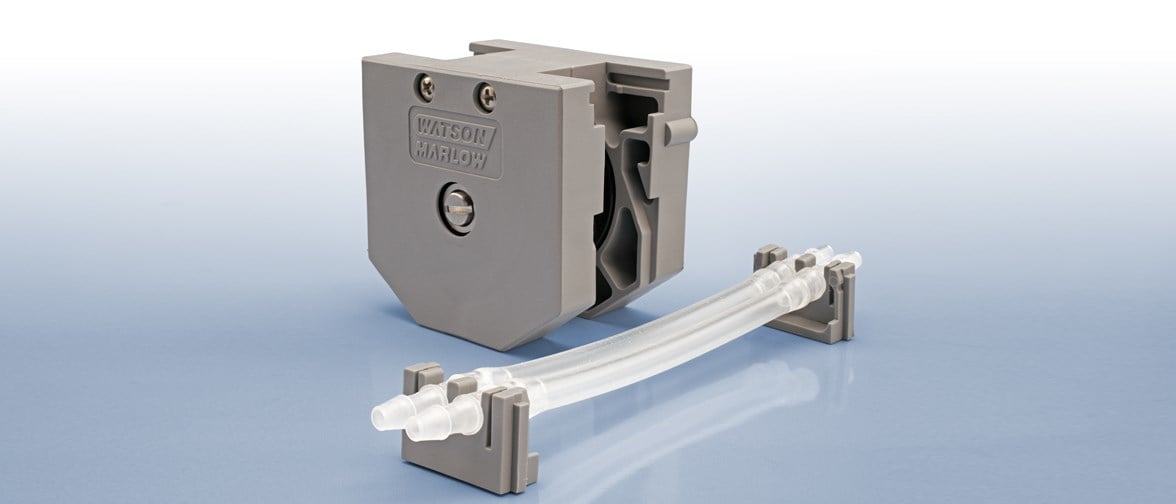

400/M tube elements dimensions

Literature

Brochures

  1. Fittings for science and industry (EN).pdf
    PDF - 1.8mb

Datasheet

  1. 400A standard tube elements datasheet (EN).pdf
    PDF - 237.6kb
  2. 400M and 400N standard tube elements datasheet (EN).pdf
    PDF - 107.7kb
  3. 400D2 and 400D3 standard tube elements datasheet (EN).pdf
    PDF - 64.3kb

Order Information

产品codes

400/A tube elements product codes

PVC tube elements for 400/A pumps
ID mm Bridge distance (mm) Track 产品code Design
0.13 52 + pressure 049.ET0A.013 1
0.25 52 + pressure 049.ET0A.025 1
0.38 52 + pressure 049.ET0A.038 1
0.44 52 + pressure 049.ET0A.044 1
0.51 52 + pressure 049.ET0A.051 1
0.57 52 + pressure 049.ET0A.057 1
0.64 52 + pressure 049.ET0A.064 1
0.76 52 + pressure 049.ET0A.076 1
0.89 52 + pressure 049.ET0A.089 1
0.95 52 + pressure 049.ET0A.095 2
1.02 52 + pressure 049.ET0A.102 2
1.09 52 + pressure 049.ETJA.109 2
1.14 52 + pressure 049.ETJA.114 2
1.22 52 + pressure 049.ETJA.122 2
1.30 52 + pressure 049. etja.130 2
1.42 52 + pressure 049.ETJA.142 2
1.52 52 + pressure 049.ETJA.152 2
1.65 52 + pressure 049.ETJA.165 2
1.75 52 + pressure 049.ETJA.175 2
1.85 52 + pressure 049.ETJA.185 2
2.06 52 + pressure 049.ETJA.206 2
Santoprene® tube elements for 400/A pumps
ID mm Bridge distance (mm) Track 产品code Design
0.25 52 standard 049.英孚0A.025 1
0.38 52 standard 049.英孚0A.038 1
0.51 52 standard 049.英孚0A.051 1
0.64 52 standard 049.英孚0A.064 1
0.76 52 standard 049.英孚0A.076 1
0.89 52 standard 049.英孚0A.089 1
1.02 52 + pressure / standard 049.英孚JA.102 2
1.14 52 + pressure / standard 049.英孚JA.114 2
1.30 52 + pressure / standard 049.英孚JA.130 2
1.42 52 + pressure / standard 049.英孚JA.142 2
1.52 52 + pressure 049.英孚JA.152 2
1.65 52 + pressure 049.英孚JA.165 2
1.85 52 + pressure 049.英孚JA.185 2
Silicone tube elements for 400/A pumps
ID mm Bridge distance (mm) Track 产品code Design
0.51 52 standard 049.EB0A.051 1
0.64 52 standard 049.EB0A.064 1
0.76 52 standard 049.EB0A.076 1
0.89 52 standard 049.EB0A.089 1
1.02 52 standard 049.EBJA.102 2
1.14 52 standard 049.EBJA.114 2
1.30 52 standard 049.EBJA.130 2
1.42 52 standard 049.EBJA.142 2
1.52 52 + pressure 049.EBJA.152 2
1.65 52 + pressure 049.EBJA.165 2
1.85 52 + pressure 049.EBJA.185 2
2.06 52 + pressure 049.EBJA.206 2

400/D tube elements product codes

Bore/Wall Bioprene Peroxide cured Silicone Connects to
0.5/1.0 mm 049.英孚6D.N05 - Tube bore 3.0
1.0/1.0 mm 049.英孚6D.N10 049.EH6D.N10 Tube bore 3.0
2.0/1.0 mm 049.英孚6D.N20 049.EH6D.N20 Tube bore 3.0
3.0/1.0 mm - 049.EH6D.N30 Tube bore 3.0

400/M tube elements product codes

Bore/Wall Bioprene Tygon® E-3603 Peroxide cured Silicone Connects to
1.6/1.6 mm 049.英孚6M.E16 049.ET6M.E16 049.EH6M.E16 FTLL, see transfer connections below
2.4/1.6 mm 049.英孚6M.E24 049. et6m.e24 049.EH6M.E24 FTLL, see transfer connections below
3.2/1.6 mm 049.英孚6M.E32 049.ET6M.E32 049.EH6M.E32 FTLL, see transfer connections below
4.0/1.6 mm 049.英孚6M.E40 049.ET6M.E40 049.EH6M.E40 FTLL, see transfer connections below
Transfer connections
Connects to Ordering codes
Tube bore 1.6 FTLL210-6
Tube bore 2.4 FTLL220-6
管孔3.2 FTLL230-6
Tube bore 4.0 FTLL240-6
Tube bore 4.8 FTLL250-6

400/N tube elements product codes

Bore/Wall Bioprene Peroxide cured Silicone Connects to
0.5/1.0 mm 049.英孚6N.N05 - Tube bore 3.0
1.0/1.0 mm 049.英孚6N.N10 049.EH6N.N10 Tube bore 3.0
2.0/1.0 mm 049.英孚6N.N20 049.EH6N.N20 Tube bore 3.0
3.0/1.0 mm 049.英孚6N.N30 049.EH6N.N30 Tube bore 3.0

400/L tube elements product codes

Bore/Wall Bioprene Silicone PVC
0.8/1.6 mm 049.英孚6L.E08 049.EH6L.E08 -
1.6/1.6 mm 049.英孚6L.E16 049.EH6L.E16 049.ET6L.E16
2.4/1.6 mm 049.英孚6L.E24 049.EH6L.E24 049.ET6L.E24
3.2/1.6 mm 049.英孚6L.E32 049.EH6L.E32 049.ET6L.E32
4.0/1.6 mm 049.英孚6L.E40 049.EH6L.E40 049.ET6L.E40
4.8/1.6 mm 049.英孚6L.E48 049.EH6L.E48 049.ET6L.E48

400/VM manifold tube elements product codes

Tube colour code Bore

Pharmed PBT

(Bridge distance=152 mm)

Tygon E3603

(Bridge distance=152 mm)

Tygon LFL

(Bridge distance=152 mm)

Silicone Platinum cured

(Bridge distance=140 mm)
Orange/Black 0.13 980.A013.152
Orange/Red 0.19 980. a019.152
Orange/Blue 0.25 978.A025.152 980.A025.152 987.A025.152
Orange/Green 0.38 978.A038.152 980.A038.152 987.A038.152
Green/Yellow 0.44 980.A044.152
Orange/Yellow 0.51 978.A051.152 980.A051.152 987.A051.152 983.A051.140
White/Yellow 0.57 980.A057.152
Orange/White 0.64 978.A064.152 980.A064.152 987.A064.152
Black/Black 0.76 978.A076.152 980.A076.152 987.A076.152 983.A076.140
Orange/Orange 0.89 978.A089.152 980.A089.152 987.A089.152
White/Black 0.95 980.A095.152
White/White 1.02 978.A102.152 980.A102.152 987.A102.152 983.A102.140
White/Red 1.09 980.A109.152
Red/Red 1.14 978.A114.152 980.A114.152 987.A114.152 983.A114.140
Red/Grey 1.22 980.A122.152
Grey/Grey 1.30 980.A130.152 987.A130.152 983.A130.140
Yellow/Yellow 1.42 978.A142.152 980.A142.152 987.A142.152 983.A142.140
Yellow/Blue 1.52 978.A152.152 980. a152.152 987.A152.152
蓝/蓝 1.65 978.A165.152 980.A165.152 987.A165.152
Blue/Green 1.75 980.A175.152
Green/Green 1.85 978.A185.152 980.A185.152 987.A185.152
Purple/Purple 2.06 978.A206.152 980.A206.152 987.A206.152 983.A206.140
Purple/Black 2.29 978.A229.152 980.A229.152 987.A229.152 983.A229.140
Purple/Orange 2.54 978.A254.152 980.A254.152 987.A254.152 983.A254.140
Purple/White 2.79 978.A279.152 980.A279.152 987.A279.152 983.A279.140
