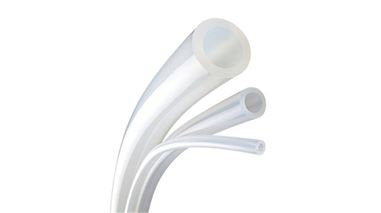

Pumpsil tubing
Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -20 ºC to 80 ºC (-4 ºF to 176 ºF).
Tubing - peristaltic
Fluid path - connectors
BioValve
Overview

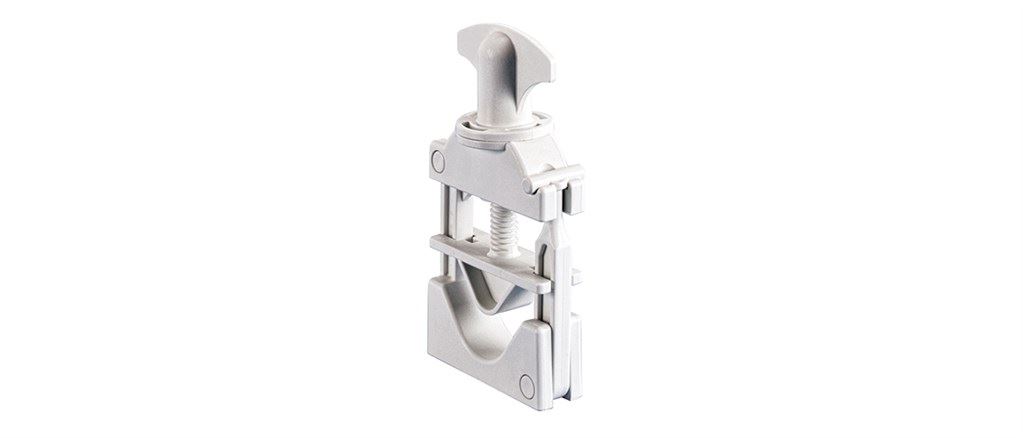

BioValve® variable flow control valve
BioValve is a precision restriction flow controller and shut-off valve for use in bioprocessing and pharmaceutical manufacturing applications.
Features and benefits
- Lot numbers moulded in for full traceability
- Profiled to minimise flow path turbulence
- Thread pitch is calibrated to 2 mm per turn, permitting controlled flow restriction
- Suitable for sterilisation by autoclave and gamma irradiation
- Moulded from reinforced Nylon USP Class VI
Technical summary
| Max. operating pressure | 10 bar |
| Max. operating pressure | 145 psi |
| Shelf life | 5 years |
| Certification | ADCF, ISO 14644-1 Class 7, ISO 9001, ISO10993, USP Class VI |
| 大小 | ½-1¼ OD Tube, 1/8-¾ OD Tube in |
Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.
Specifications
Technical specifications
| BioValve | |
|---|---|
| Max. operating pressure | 10 bar |
| Max. operating pressure | 145 psi |
| Autoclave stability | 121 °C 30 minutes |
| Gamma stability | Max 40 kGy Cumulative |
| Shelf life | 5 years |
| Certification | ADCF, ISO 14644-1 Class 7, ISO 9001, ISO10993, USP Class VI |
| 大小 | ½-1¼ OD Tube, 1/8-¾ OD Tube in |
| Quantity | 5 PCS |
Materials of construction
| Material | Nylon 66 |
Literature
Brochures
Bioprocessing (EN).pdf
PDF - 3.5mbBioPure overview (EN).pdf
PDF - 592.7kb
Datasheet
Other Resources
½ inch - 1¼ inch OD tubing BioValve technical drawing.pdf
PDF - 241.2kb⅛ inch - ¾ inch OD tubing BioValve technical drawing.pdf
PDF - 241.2kb
Order Information
Product codes
BioValve product codes
| Part Number | 大小 | Material | Max operating pressure | Max Cumulative Gamma Dose | |
|---|---|---|---|---|---|
| BV0500NW | 1/8" - 3/4" - OD Tubing | Nylon 66 | 150 psiG | 10 bar | 40 kGy |
| BV1000NW | 1/2" - 1 1/4" - OD Tubing | Nylon 66 | 150 psiG | 10 bar | 40 kGy |
Recommended Products
-
![Pumpsil tubing]()
-
![PureWeld XL tubing]()

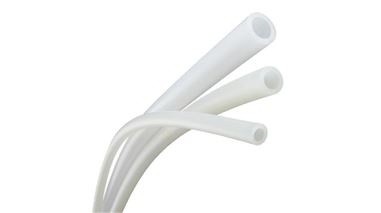

PureWeld XL tubing
High performance TPE tubing with exceptional life and accurate flow rates. Weldable and sealable for sterile connectivity.
Tubing - peristaltic
Related Products
-
![BioBarb™ hose tail to Tri-Clamp adaptors]()

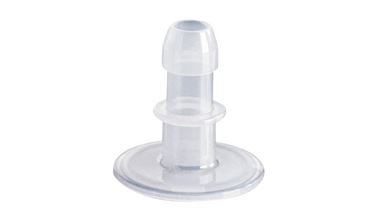

BioBarb™ hose tail to Tri-Clamp adaptors
Hose barb to Tri-Clamp adaptors. Oversized barb design facilitates strong adhesion to tubing.
Fluid path - connectors
-
![BioClamp® - Plastic Tri-Clamp]()

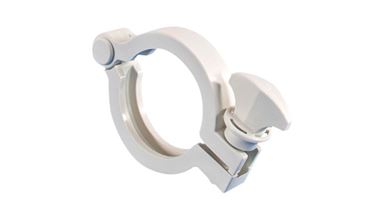

BioClamp® - Plastic Tri-Clamp
Manufactured from borosilicate reinforced nylon. Tamper evident feature available on the 1/2" to 4"
Fluid path - connectors
-
![BioEndCap™ - End caps with pull tab]()

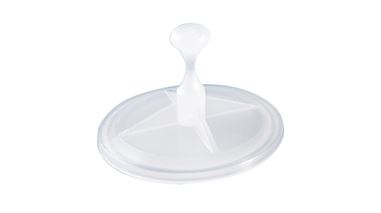

BioEndCap™ - End caps with pull tab
End caps with pull tab designed to terminate a disposable manifold. Pull-tab ensures easy removal of the cap.
Fluid path - connectors
-
![FlatBioEndCap™ - End caps for connectors]()

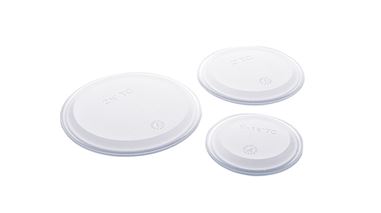

FlatBioEndCap™ - End caps for connectors
End caps for connectors. Flat end cap directly replaces stainless steel equivalent.
Fluid path - connectors
-
![Q-Clamp - single handed, tool free sanitary Tri-Clamp]()

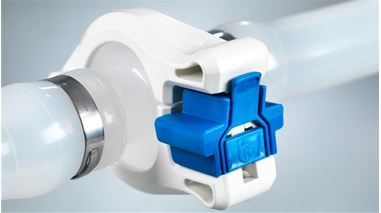

Q-Clamp - single handed, tool free sanitary Tri-Clamp
